S-MS 41/51S Self-drilling sheet metal screws

Self-drill screw S-MS41S 4,8x20 #2083699

Configurator
Technical Data
Documents
Features & Applications
Related Products
L068414.tif

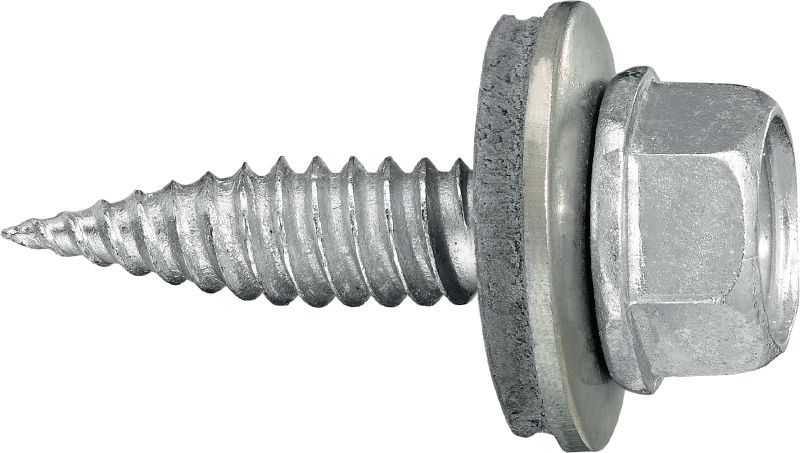

Self-drilling screw (A2 stainless steel) with washer for chipless fastening of thin metal sheets (up to 2x 1.0 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 14 mm
  • Base materials: Carbon steel, Aluminium
premium

Choose options

Base materials
  • Carbon steel, Aluminium
Corrosion protection
  • Stainless steel A2
Drilling capacity range DC
  • 1 - 2 mm
Thickness fastened range MF
  • 1 - 4 mm
Length
  • 20 mm
Pack size
  • 500 pc
 Product options
Quantity
Pack
Total Pieces
500
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
930.00 ILS
1.86 ILS
/
1 each

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
14 mm
Base materials
Carbon steel, Aluminium
Drilling capacity - max
2 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
4.8 mm
Length
20 mm
Drilling capacity DC - min
1 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
Stainless washer

Documents

Approval document
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_de, German [ 4.4 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to reliably seal out water
  • Fast, sharp screw tip – for chipless fastening and less work for cleaning metal chips
  • Virtually no skidding when starting at an angle or on wet surfaces
  • For more reliable fastenings with defined load values

Applications

  • Fastening overlap joints between profile metal sheets and sandwich panels
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Fastening thin metal sheets (up to 2x 1.0 mm)
  • Watertight fastenings – washer included
  • Fastening aluminum to steel or aluminum substructures
