S-MD/MS M Self-drilling sidelap screws for SDT 5

בורג קודח בסרטS-MD01Z 4,8x19 M #378978

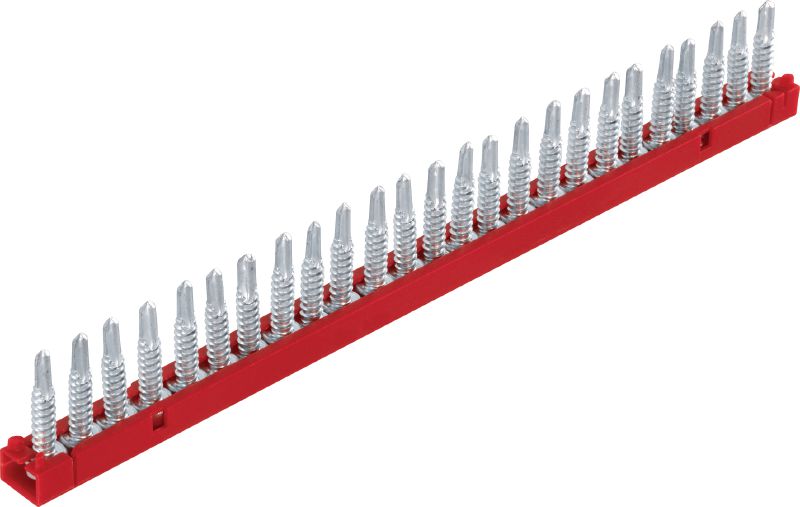

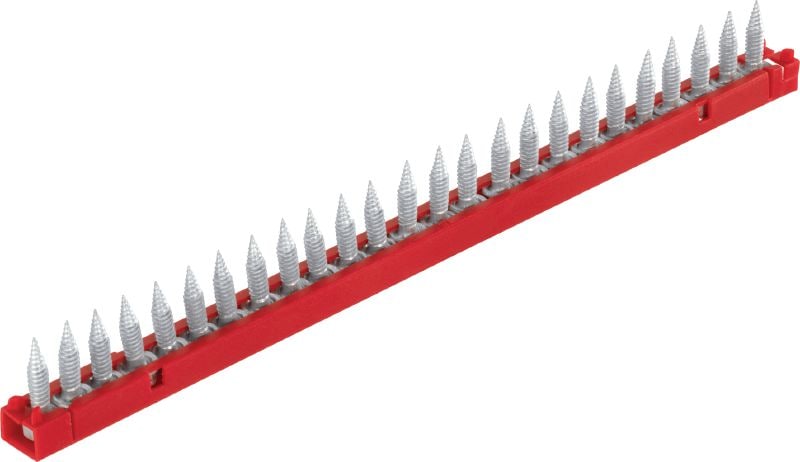

Collated self-drilling screws for use with the SDT 5 stand-up handle for sidelap and frame fastening

Screw drive/recess type: Hexagon 8
Base materials: Carbon steel
Drilling capacity - max: 2.75 mm

Choose options

Thickness fastened range MF

1.2 - 10 mm

Drilling capacity range DC

1.2 - 2.75 mm

Length

19 mm

Screw drive/recess type

Hexagon 8

Pack size

250 pc

Product options

Quantity

Pack

Total Pieces

250

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

109.00 ILS

0.44 ILS / 1 each

Technical Data

Screw drive/recess type

Hexagon 8

Base materials

Carbon steel

Drilling capacity - max

2.75 mm

Environmental Conditions

Dry indoor

Screw diameter d

4.8 mm

Length

19 mm

Drilling capacity DC - min

1.2 mm

Screw-head diameter

10 mm

Washer type

None

Documents

Features & Applications

Features

Higher installation productivity – complete your roofs faster and earlier
For use with a Hilti stand-up handle – the user stands upright while driving screws on roofs, helping to reduce user fatigue and increase productivity
S-MS 01Z: chipless fastening – less likely metal corrosion from rusting metal chips
S-MS 01Z: virtually no skidding when starting at an angle or on wet surfaces
S-MS 01Z: chipless fastening, no metal corrosion from rusting metal chips

Applications

Fastening overlapping metal sheets on insulated roofs
Fastening metal sheets to thin and thick metal beam substructures in insulated roofs
Fastening edge reinforcement elements to metal sheets on insulated roofs
Sheet metal on steel
Roof applications
