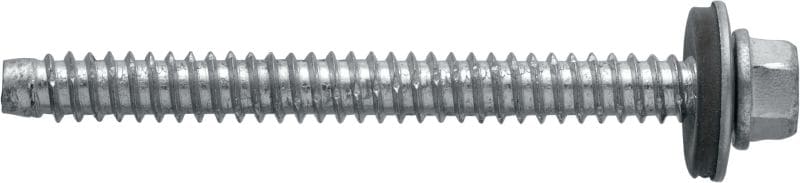

S-MP 52 Z Self-tapping screws

Self-tapping screw (zinc-plated carbon steel) with 16 mm washer for fastening steel/aluminum sheets to HTU channels

premium

Thickness fastened range MF

Length

Screw drive/recess type

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 337.00 ILS

Screw drive/recess type

Hexagon 3/8

Washer size

16 mm

Base materials

Carbon steel, HTU (cast-in channel)

Environmental Conditions

Dry indoor

Screw diameter d

6.3 mm

Screw-head diameter

13 mm

Product Class

Premium

Washer type

Bonded EPDM

Self-tapping screw for fastening steel- or aluminum sheets to HTU cast-in channels
EPDM rubber washer – creates a more reliable seal against water
For reliable fastenings with defined load values
Length optimized for the most common sandwich panels
Attractive final appearance – screw head can be colored to match the façade

Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
Galvanized carbon steel for fastening in dry, indoor environments
Fastening steel framing (1.25 mm minimum member thickness)
For applications requiring watertight fastenings with 16 mm washer

For approval or certificate information, please see individual items.
