S-MD 51 S Self-drilling metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-MD

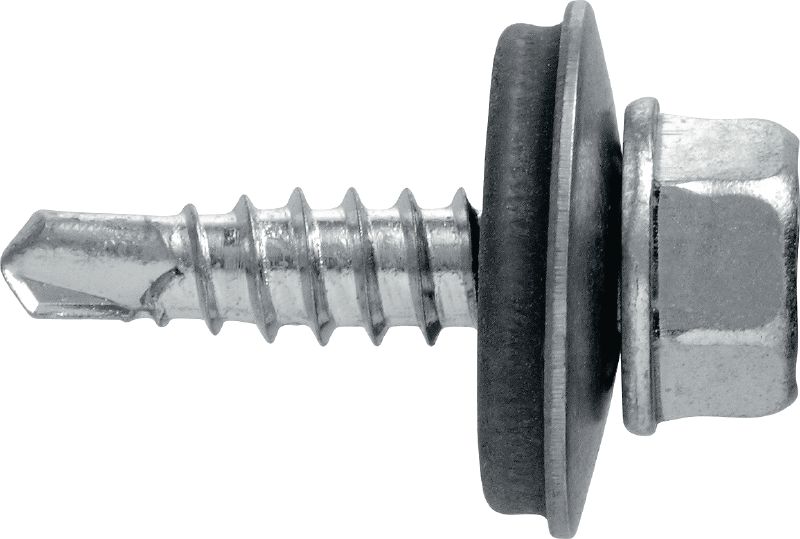

Self-drilling screw (A2 stainless steel) with 16 mm washer for thin metal-to-metal fastenings (up to 2mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel, Aluminium
premium

Choose options

Thickness fastened range MF
  • 1.2 - 6 mm
  • 1.2 - 8 mm
  • 1.2 - 15 mm
Drilling capacity range DC
  • 1.2 - 2 mm
  • 1.2 - 3 mm
Length
  • 22 mm
  • 25 mm
  • 32 mm
Screw drive/recess type
  • Hexagon 8
Pack size
  • 250 pc
  • 500 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 469.00 ILS

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel, Aluminium
Drilling capacity - max
2 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Drilling capacity DC - min
1.2 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
Bonded EPDM

Documents

Approval document
Certificate
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_de, German [ 4.4 MB ]
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Reliable, corrosion-resistant fastenings
  • EPDM rubber washer – creates a more reliable seal against water
  • Fast and robust drill tip
  • For reliable fastenings with defined load values

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Thin metal-to-metal connections (up to 2 mm)
  • For applications requiring watertight fastenings with 16 mm washer
  • Fastening steel/aluminum to wood substructures

For approval or certificate information, please see individual items.
