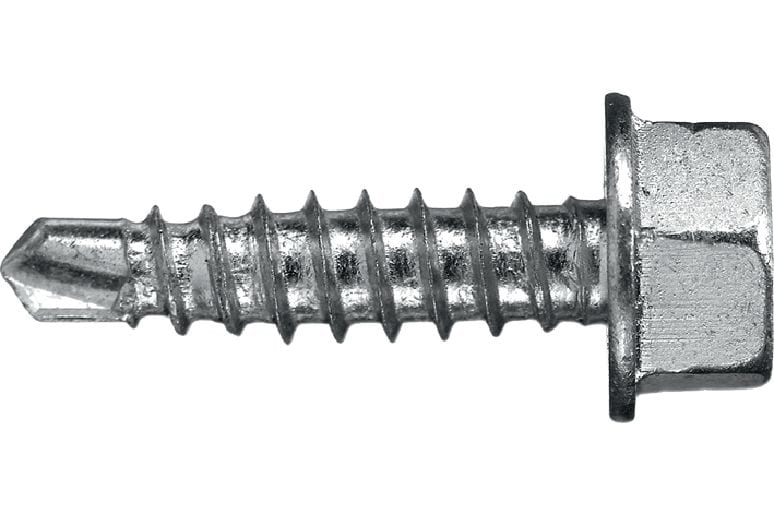

S-MD 01 Z Self-drilling metal screws
Self-drilling screw (zinc-plated carbon steel) without washer for thin metal-to-metal fastenings (up to 3 mm)
- Screw drive/recess type: Hexagon head
- Base materials: Carbon steel
- Environmental Conditions: Dry indoor
premium
Choose options
Thickness fastened range MF
- 1.2 - 4 mm
- 1.2 - 4.5 mm
- 1.2 - 7.5 mm
- 1.2 - 8.5 mm
- 1.2 - 9 mm
- 1.2 - 10 mm
Drilling capacity range DC
- 1.2 - 2.5 mm
- 1.2 - 2.75 mm
- 1.2 - 3 mm
Length
- 13 mm
- 16 mm
- 19 mm
Screw drive/recess type
- Hexagon 7
- Hexagon 8
Pack size
- 500 pc
- 1000 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 141.00 ILS
Technical Data
Screw drive/recess type
Hexagon head
Base materials
Carbon steel
Environmental Conditions
Dry indoor
Drilling capacity DC - min
1.2 mm
Product Class
Premium
Washer type
None
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Drill point
- Reliable, approved fastenings
- Fast and robust drill tip
- Greater working convenience
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Galvanized carbon steel for fastening in dry, indoor environments
- Thin metal-to-metal connections (up to 3 mm)
- Sheet metal thickness 1.2 to 2.75 mm
- Steel sheeting on steel substructures indoors, screw fastenings for liner trays
For approval or certificate information, please see individual items.
