S-MS 51S 6.0 Self-drilling bi-metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products

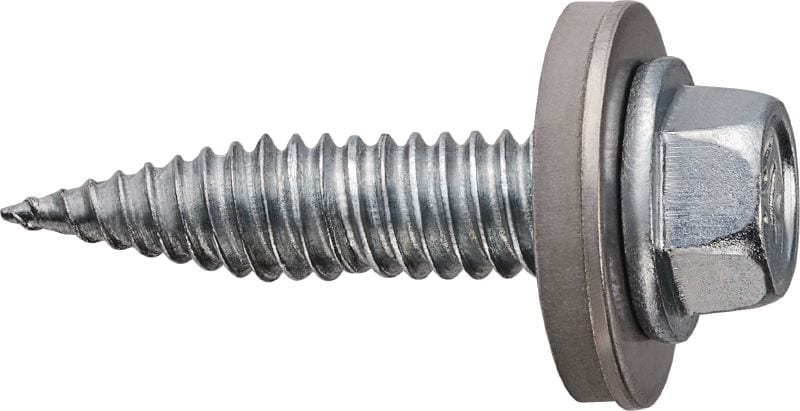

Still life picture of the screw S-MS 51S 6.0X25

Self-drilling bi-metal screw (A2 stainless steel) with washer for chipless fastening on steel and aluminum base material

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Aluminium, Metal, Steel

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Aluminium, Metal, Steel
Drilling capacity - max
2 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
6 mm
Drilling capacity DC - min
0.8 mm
Washer type
Bonded EPDM

Documents

pdf Screw Fastening Technical Document, English [ 12 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Non-cutting material displacement – no sheet metal corrosion from rusting metal chips
  • Fast, sharp screw tip – for chipless fastening and less work for cleaning metal chips
  • Virtually no skidding when starting at an angle or on wet surfaces
  • For more reliable fastenings with defined load values

Applications

  • Fastening Solar Rails to steel and aluminum base material
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Watertight fastenings – washer included

For approval or certificate information, please see individual items.
