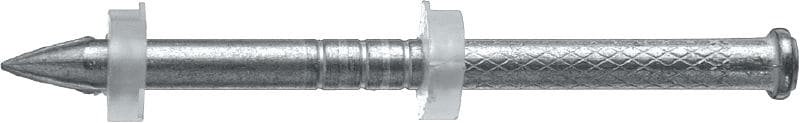

X-CT DP8 formwork nails

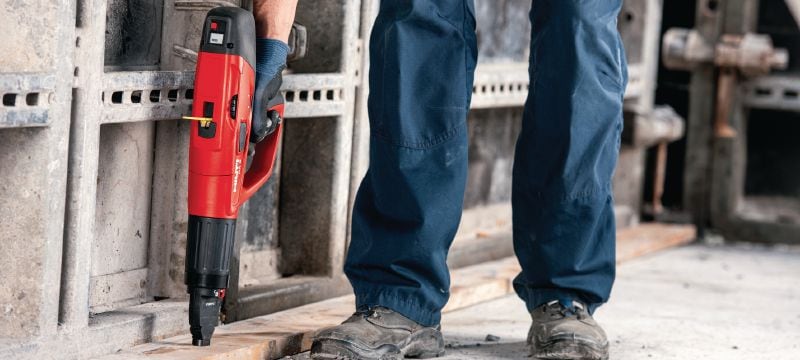

Single nail for fastening formwork to concrete using powder-actuated nailers
- Base materials: Concrete (soft), Masonry (solid limestone brick), Steel
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanized zinc coated <20 µm
premium
Customers also searched for Temporary fastening, kicker plate attachment, temporary wood to concrete or sill plate to concrete.
Choose options
Fastener shank length
- 47 mm
- 52 mm
- 62 mm
Pack size
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 71.00 ILS
Technical Data
Base materials
Concrete (soft), Masonry (solid limestone brick), Steel
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Outdoor temporary applications, Dry indoor, Indoor environments with temporary condensation
Material
Carbon steel
Fastener shank diameter
3.7 mm
Point type
Cut point
For use with (tools)
DX 5, DX 6
Product Class
Premium
Documents
Features & Applications
Features
- Predefined shear points on the fastener for controlled removal of nails
- Fast removal – no crowbar needed
- Remove wood virtually undamaged so it can be reused
Applications
- Temporary fastening of wood to concrete
For approval or certificate information, please see individual items.
