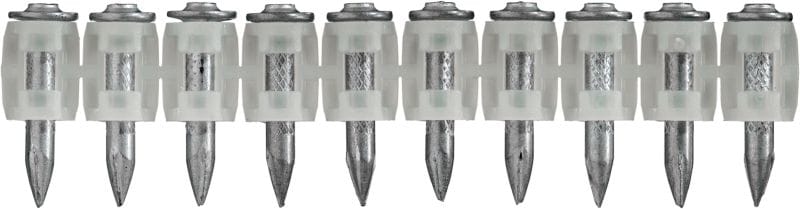

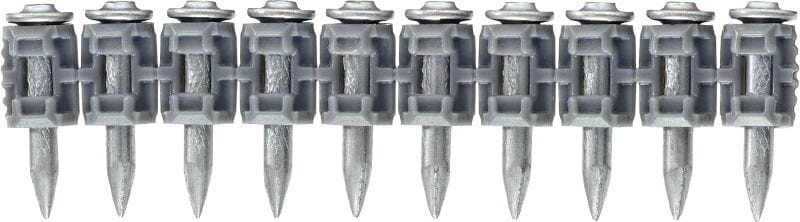

X-GN MX Masonry nails (collated)
Collated nails for fastening to concrete and other base materials using the GX 120 gas nailer
- Base materials: Concrete (soft), Masonry (solid limestone brick), Masonry (grout filled concrete block)
- Minimum thickness of base material (concrete): 60 mm
- Corrosion protection: Galvanized zinc coated <20 µm
standard
Choose options
For use with (tools)
- GX 120
Fastener shank length
- 20 mm
- 27 mm
- 32 mm
- 39 mm
Pack size
- 1 pc
- 750 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 418.00 ILS
Technical Data
Base materials
Concrete (soft), Masonry (solid limestone brick), Masonry (grout filled concrete block)
Minimum thickness of base material (concrete)
60 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
2.6 mm
Point type
Cut point
Approvals
IBMB
For use with (tools)
GX 120
Product Class
Standard
Documents
Features & Applications
Features
- Nail for excellent performance on soft concrete
- Everyday fastening solution with cut-tip nail
Applications
- Fastening to soft concrete
- Fastening to solid masonry
- Fastening to filled block
For approval or certificate information, please see individual items.
