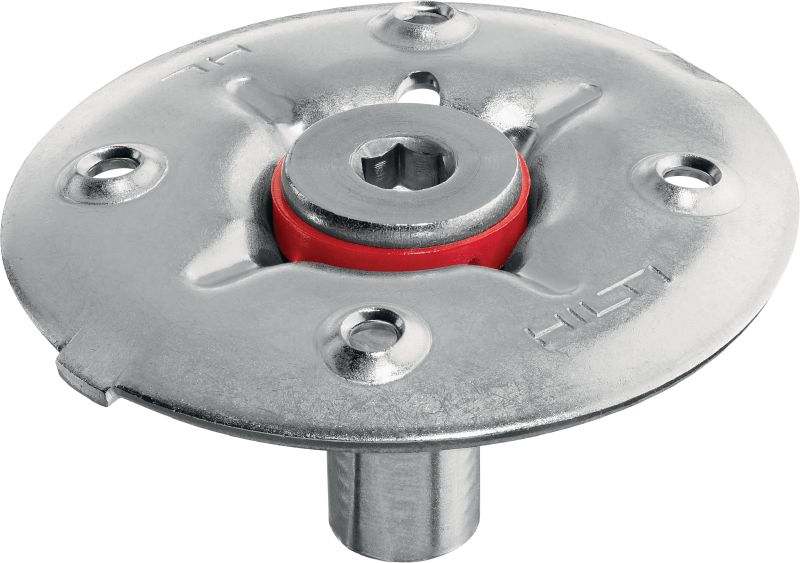

X-FCM-R HL High load grating fastener disc (stainless)

High load grating disc (stainless steel)

Stainless steel high load grating fastener disc for fixing floor grates with threaded studs in highly corrosive environments

Application: Grating
Approvals: ABS, BV, DNV GL, LR
For use with (tools): DX 460, DX 5, DX 6

ultimate

Choose options

Grating height

23 - 28 mm
28 - 30 mm
28 - 33 mm
32 - 37 mm
38 - 43 mm
48 - 53 mm

Grating width range

18 - 44 mm

Corrosion protection

Stainless steel A4(316) or equivalent

Pack size

100 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 2,458.00 ILS

Technical Data

Application

Grating

Approvals

ABS, BV, DNV GL, LR

For use with (tools)

DX 460, DX 5, DX 6

Corrosion protection

Stainless steel A4(316) or equivalent

Environmental Conditions

Dry indoor, Indoor environments with temporary condensation, Outdoor temporary applications, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution

Minimum thickness of base material (steel)

8 mm

Product Class

Ultimate

Documents

Features & Applications

Features

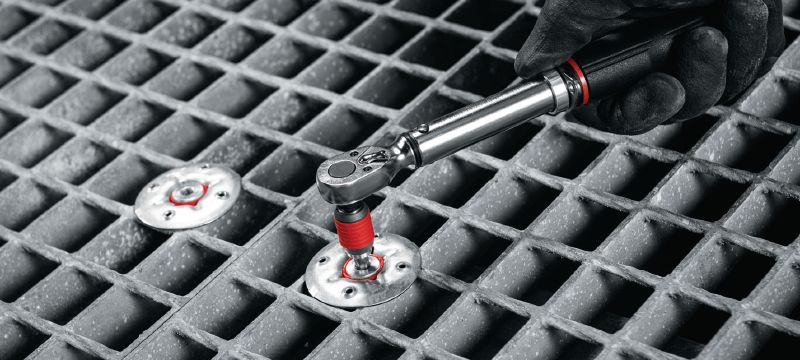

Labor-saving grating installation – fewer steps than traditional grating clamps and welding
Approvals and certificates – technical data, test reports and approvals available
No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
Durable hold – locking tabs on the disc help to prevent loosening or spinning
Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

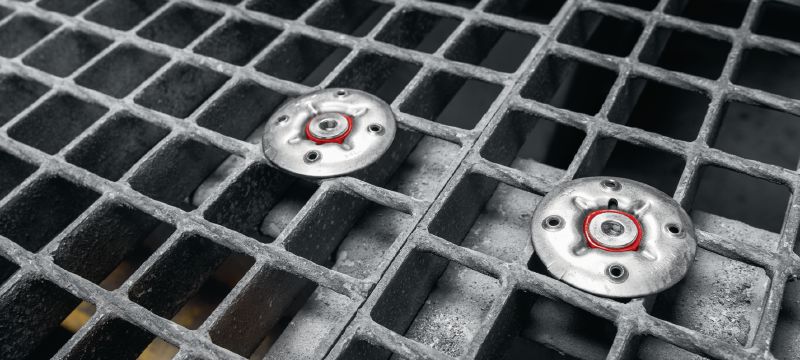

Fastening grating to steel in highly corrosive C5 environments, such as ships or offshore oil and gas installations
For gratings exposed to high tensile loads such as wave zone gratings
Fastening steel grating
Fastening fiber-reinforced plastic (FRP) grating
Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
