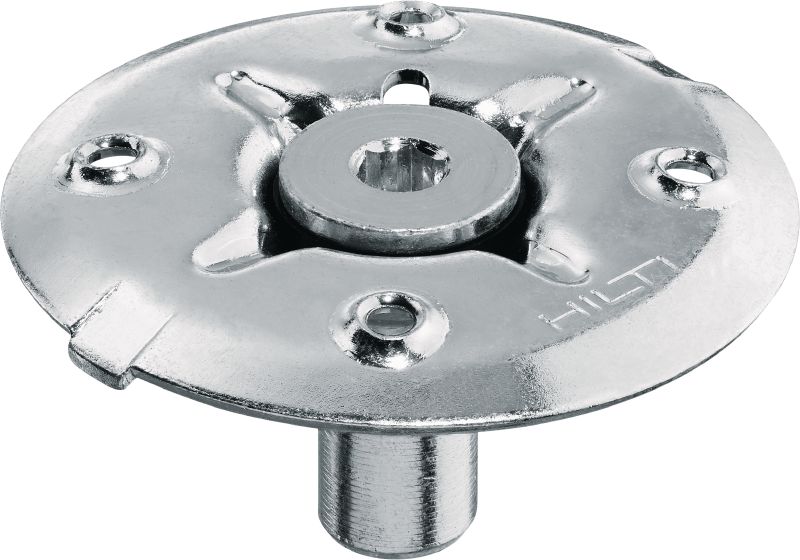

X-FCM Grating fastener disc

Grating disc X-FCM 28/33 #2349078

Grating disc
DX 460-GR

Zinc coated grating fastener disc for fixing floor grates with threaded studs in low corrosion environments

  • Application: Grating
  • Approvals: ABS, LR
  • For use with (tools): BX 3, DX 351
ultimate

Choose options

Grating height
  • 28 - 33 mm
Grating width range
  • 18 - 40 mm
Corrosion protection
  • Galvanized zinc coated <20 µm
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1,195.32 ILS
11.95 ILS
/
1 each

Technical Data

Application
Grating
Approvals
ABS, LR
For use with (tools)
BX 3, DX 351
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation
Minimum thickness of base material (steel)
6 mm
Product Class
Ultimate

Documents

pdf X-FCM Data Sheet, English, German, Spanish, French, Italian, Polish [ 5.5 MB ]
pdf X-BT-GR, X-BT-MR Data Sheet, English [ 2.7 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf Scheda tecnica X-FCM en, English [ 241.5 KB ]

Features & Applications

Features

  • Labor-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

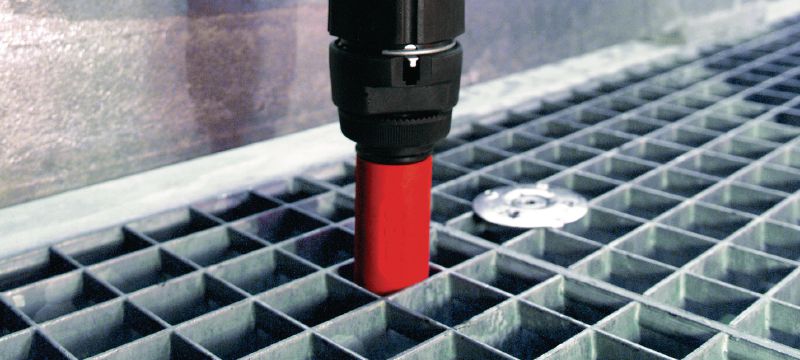

  • Fastening grating to steel in low corrosion C1 environments, such as dry and indoor locations
  • For gratings exposed to standard loads such as walkways
  • Fastening steel grating
  • Fastening fiber-reinforced plastic (FRP) grating
  • Grating fastener disc for use with M8 threaded studs
