X-DFB C27 Butterfly conduit clip with nail

Configurator
Technical Data
Documents
Features & Applications
Related Products
7033.tif
X-FB, X-DKH

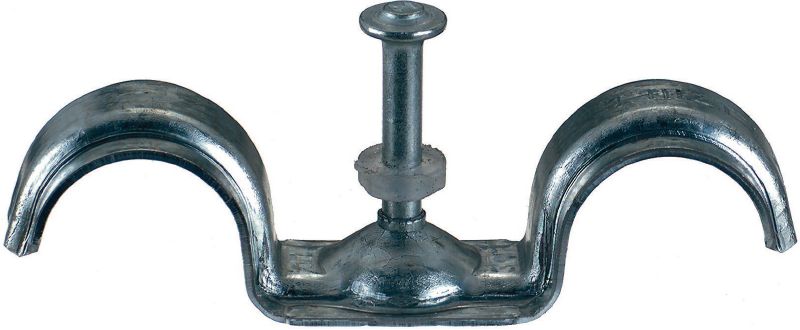

Metal butterfly conduit clip with pre-mounted concrete nail for use with powder-actuated tools

  • Application: Conduit Fastening
  • Material: Carbon steel
  • For use with (tools): DX 351, DX 460, DX 5, DX 6
ultimate

Choose options

Cable conduit diameter
  • 20 mm
  • 24 mm
  • 25 mm
  • 28 mm
  • 35 mm
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 312.00 ILS

Technical Data

Application
Conduit Fastening
Material
Carbon steel
For use with (tools)
DX 351, DX 460, DX 5, DX 6
Base materials
Concrete (soft), Concrete (normal-weight over metal deck), Concrete (lightweight over metal deck), Masonry (solid clay brick), Masonry (solid limestone brick)
Approvals
ITB
Width
17.5 mm
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Product Class
Ultimate

Documents

Technical information
Instruction for use
pdf X-FB Data Sheet, English [ 1 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]
pdf Scheda tecnica X-FB en, English [ 98.4 KB ]

Features & Applications

Features

  • Quick, cost-efficient fastening of conduits and pipes
  • Integrated top hat for high-quality, more reliable fastenings
  • High-grade, preassembled C27 nail for more secure fastenings on concrete
  • Reinforcing rib to increase the conduit clip's rigidity

Applications

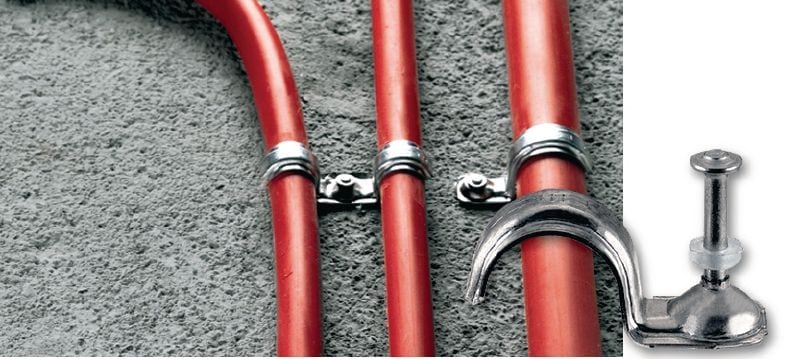

  • Fastening flexible electrical conduits on concrete
  • Fastening water pipes (hot and cold) and heating pipes on concrete

For approval or certificate information, please see individual items.
