HAC-T Standard anchor channel

Configurator
Technical Data
Documents
Features & Applications
Related Products

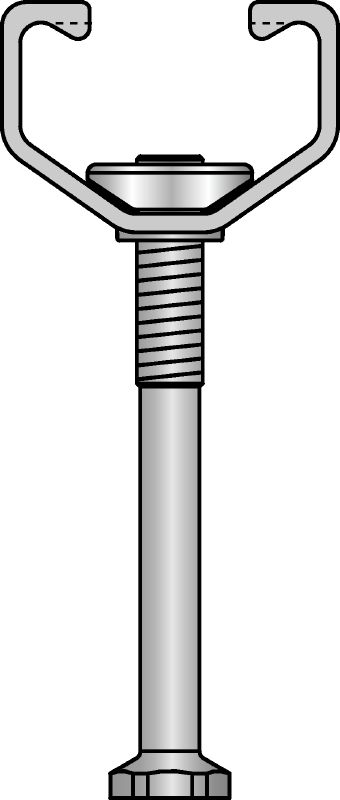

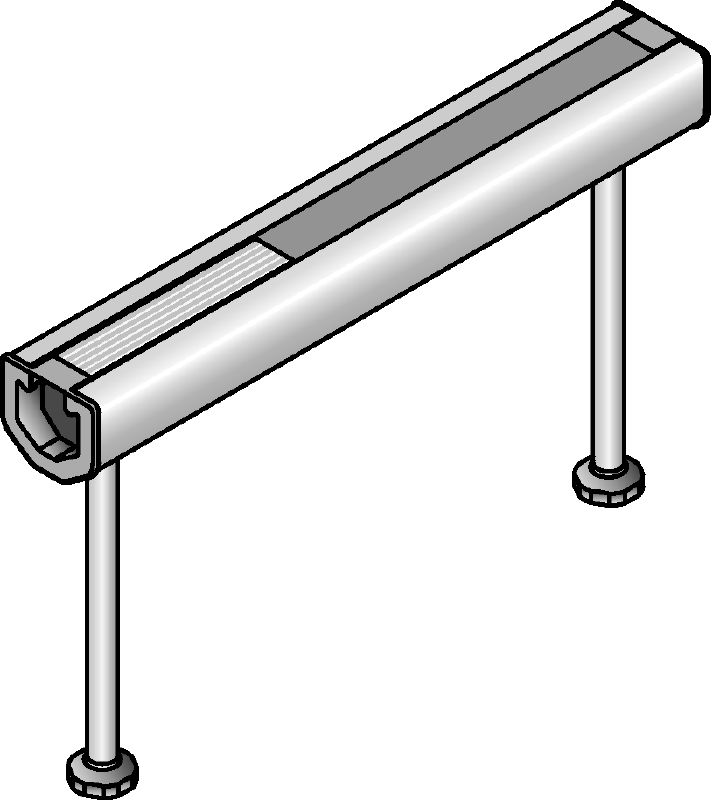

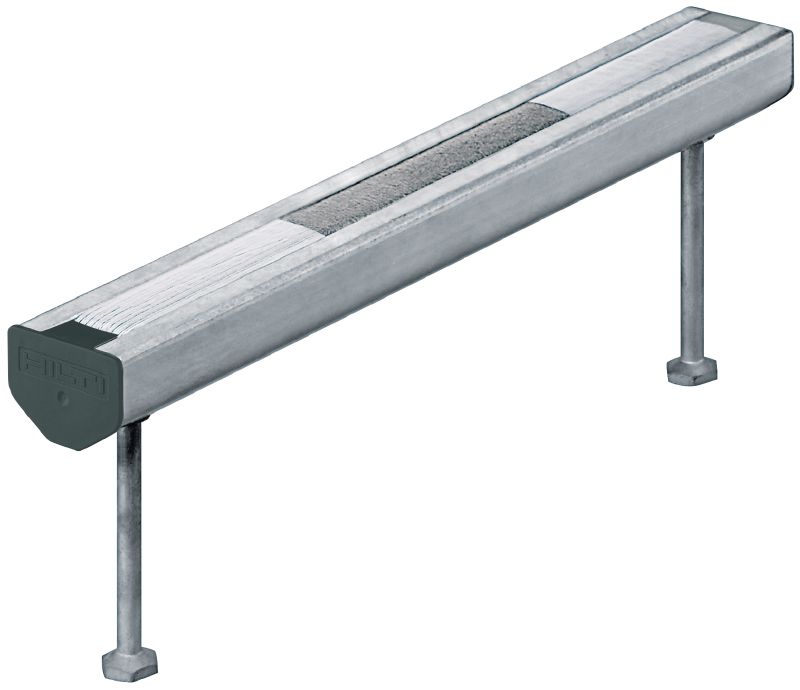

Serrated cast-in anchor channel for 3 dimensional loads for fixing in concrete
Serrated cast-in anchor channel for 3 dimensional loads for fixing in concrete
36132.tif
Serrated cast-in anchor channel for 3 dimensional loads for fixing in concrete

Serrated cast-in anchor channels in standard sizes and lengths with the approvals needed for 3D loads

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanized
  • PROFIS Software: Yes

Choose options

Channel profile
  • HAC-30
Length
  • 200 mm
  • 300 mm
  • 550 mm
  • 800 mm
  • 1300 mm
  • 1550 mm
  • 2050 mm
  • 2300 mm
  • 3050 mm
  • 5800 mm
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 74.10 ILS

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanized
PROFIS Software
Yes

Documents

Approval document
Technical information
Operating Instruction
pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]
pdf ETA 11/0006 Hilti HAC(-V) anchor channel, English, German, Polish [ 14.5 MB ]
pdf ETA 11/0006 for HAC cast-in anchor (ETAG -, Option -), English [ 6.9 MB ]
pdf ETA_11_0006_HAC_Anchor_Channels, German [ 6.9 MB ]

Features & Applications

Features

  • High-performance, safer solution – designed for demanding 3D applications
  • Approved for static, fatigue, seismic (ICC-ESR 3520) and fire loading
  • Serrated HAC-30 Anchor Channel is compatible with Hilti MQ41 installation components
  • Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects
  • Customizable – options available for virtually any specification

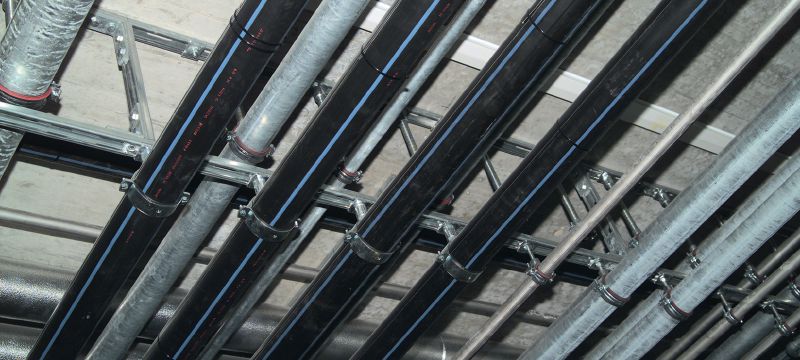

Applications

  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guiderails, sliding doors or divider beams)
  • Building appliances (e.g. heating, ventilation)
  • Power plants
  • Projects with high environmental standards

For approval or certificate information, please see individual items.
