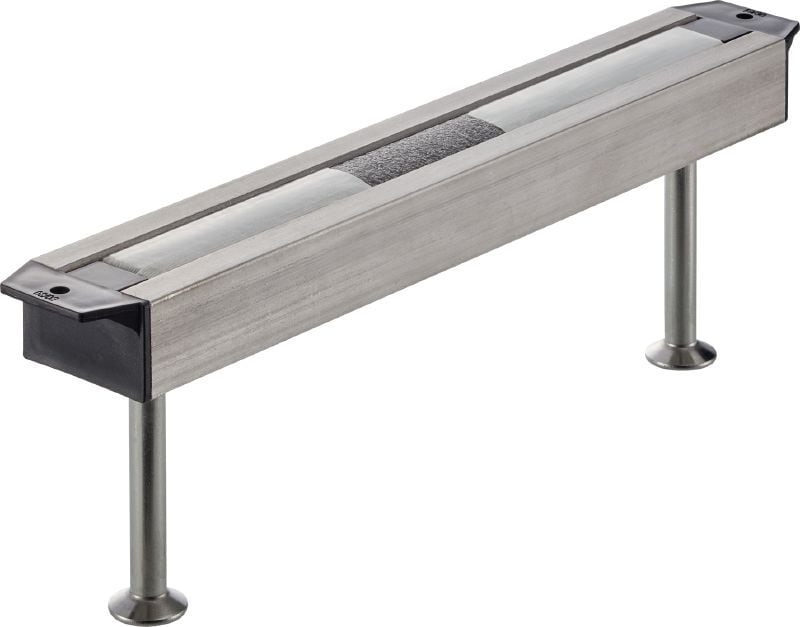

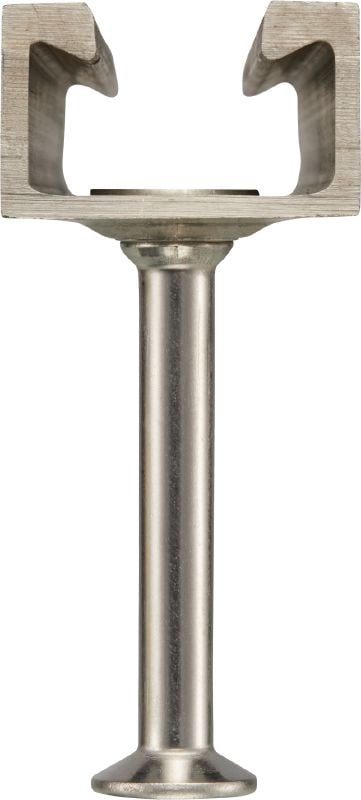

HAC-C-P Hot-rolled anchor channel

High performance hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications

  • Material, corrosion: Stainless steel, A4, Carbon Steel, Hot-Dip Galvanized
  • Channel profile: HAC-C-P 40/22, HAC-C-P 50/30
  • PROFIS Software: Yes

Choose options

Channel profile
  • HAC-C-P 40/22
  • HAC-C-P 50/30
Length
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 400 mm
  • 450 mm
  • 550 mm
  • 800 mm
  • 1050 mm
  • 1300 mm
  • 1550 mm
  • 2050 mm
  • 3050 mm
  • 6070 mm
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 54.15 ILS

Technical Data

Material, corrosion
Stainless steel, A4, Carbon Steel, Hot-Dip Galvanized
Channel profile
HAC-C-P 40/22, HAC-C-P 50/30
PROFIS Software
Yes

Documents

Features & Applications

Features

  • Upgraded load capacity – higher static tension and shear values mean you can specify the same cast-in channels for virtually any loading
  • Engineering and software support – you can use Hilti PROFIS Anchor Channel software and our engineering services team to streamline your design work
  • Designed for high-speed installation – end caps with nail holes, one-pull filler foam and many other features help to make these anchor channels faster and easier on-site
  • Available in stainless steel and hot-dip galvanized versions – helping provide corrosion protection as needed for specific environmental conditions
  • Product release and integration into EBS control drawings of DB Netz AG for catenary fastenings

Applications

  • Fastening curtain wall façade brackets to concrete slabs

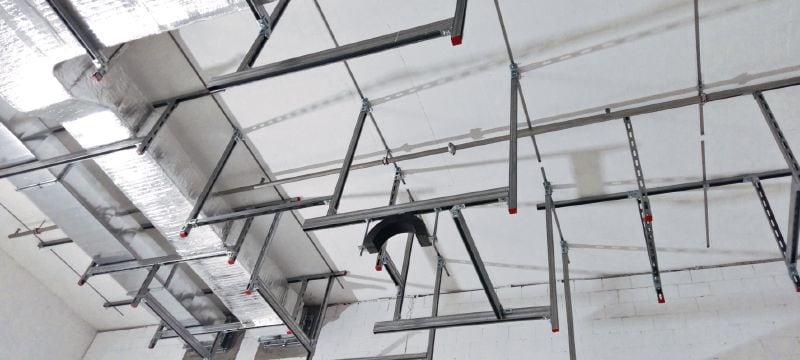

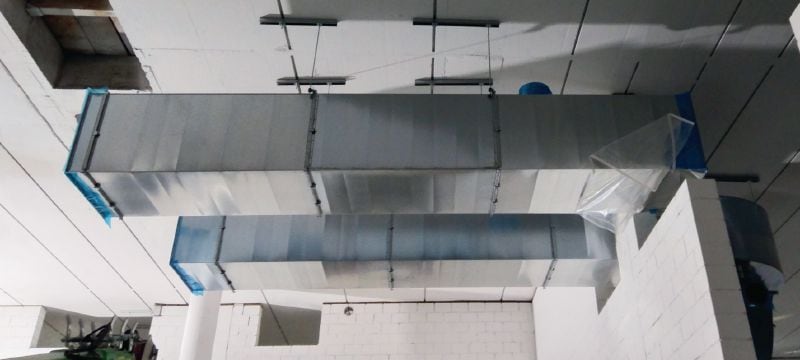

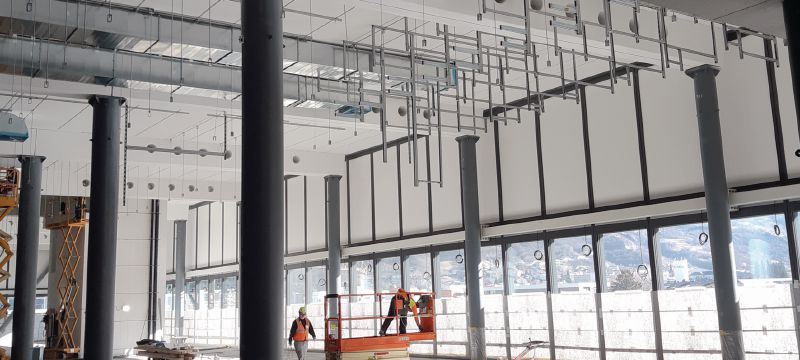

  • Fastening overhead MEP installations and equipment
  • Fastening infrastructure in tunnels, including safety equipment and overhead lines (curved and stainless steel versions available)
  • Creating adjustable, retrofittable fastening points in concrete
  • Fastening in elevator shafts, such as fixing guiderails, sliding doors or divider beams

For approval or certificate information, please see individual items.
