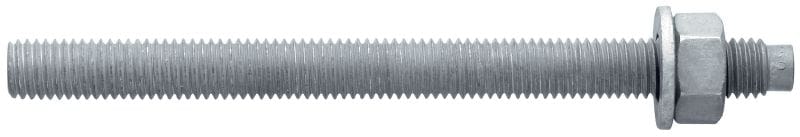

HIT-V-F-8.8 Anchor rod

Anchor rod, HIT-V-F, HIT-VF, rod, hot dipped galvanized
HIT-HY 70
9462.tif
9463.tif

High-performance anchor rod for use with injectable hybrid/epoxy anchors (8.8 hot-dip galvanized)

  • Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
  • Environmental conditions: Indoor with temporary condensation, Outdoor (more than 1km to coast)
  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)

Choose options

Material composition
  • Steel, strength 8.8 grade, hot-dip galvanized (min. 43 µm)
Anchor size - D
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
Anchor length - L
  • 150 mm
  • 180 mm
  • 190 mm
  • 200 mm
  • 220 mm
  • 260 mm
  • 280 mm
  • 300 mm
  • 380 mm
Head configuration
  • Externally threaded
Pack size
  • 5 pc
  • 8 pc
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Environmental conditions
Indoor with temporary condensation, Outdoor (more than 1km to coast)
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS Software
Yes
Approvals / Test reports
ETA, Fire, Seismic
Type of fixing
Pre-fastening, Through-fastening

Documents

pdf ETA 11/0354 for HIT-CT 1 injection mortar for anchoring application, English [ 868.2 KB ]
pdf ETA 16/0515 HVU2 capsule, English, German, Polish [ 5.6 MB ]
pdf ETA-19/0601 HIT-HY 200-A/R V3 Anchoring, English, German, Polish [ 8.9 MB ]
pdf ETA-12/0084 HIT-HY-200-R Anchor EC2 & TR055 50 years, English, German [ 3.4 MB ]

Features & Applications

Features

  • Productivity: use of optimal rod length and diameter helps to time and money with every fastening
  • Universality: simplifies your anchor rod inventory by enabling use of the same rod for various applications
  • Approvals: ETA approved system for flexible embedment depth for M8 to M30 rods
  • Head marking: enables post-installation check for anchor setting
  • The head marking shows rod length and steel grade

Applications

  • Fastenings in concrete and masonry in combination with the relevant Hilti HIT injection mortar
  • Applications where flexible embedment depths are needed

For approval or certificate information, please see individual items.
