HCC-B Shear connector

מחבר גזירה לבטון HCC-B #378921

Configurator
Technical Data
Documents
Features & Applications
Related Products
31677.tif

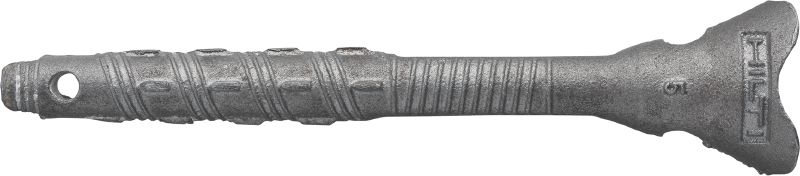

Shear connector rod for use under fatigue loading in cracked concrete

  • Material, corrosion: Cast-iron
  • Drill bit diameter: 16 mm
  • PROFIS Software: No

Choose options

Material composition
  • Malleable iron DIN EN 1562 modified
Anchor length - L
  • 180 mm
Head configuration
  • N/A
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
10,516.50 ILS
105.17 ILS / 1 each

Technical Data

Material, corrosion
Cast-iron
Drill bit diameter
16 mm
PROFIS Software
No
Approvals / Test reports
ETA

Documents

Technical information
Operating Instruction
pdf Tech_HCC-B with HIT-RE 500 V3/V4, English [ 809.9 KB ]
pdf Concrete-to-Concrete Handbook for EU framework, English [ 18.7 MB ]
pdf White Paper Bridges Post-Installed Solution, English [ 3.4 MB ]
pdf TR 066 White paper W4595 (EN), English [ 2.3 MB ]

Features & Applications

Features

  • Easy to use – no preparation of the anchor rod required before setting
  • Fast setting procedure – leveling and height adjustment done during installation
  • Immediate loading of the anchor rod
  • More reliable design – structure shows monolithic behavior after use of these shear connectors

Applications

  • Renovation – reinforcement and renovation of bridges, tunnels and high-rise structures
  • Concrete-concrete overlays
  • Rehabilitation – bridges, concrete streets, parking garages
  • Increasing the maximum permitted loading capacity of bridges
