HAS-D Anchor rod

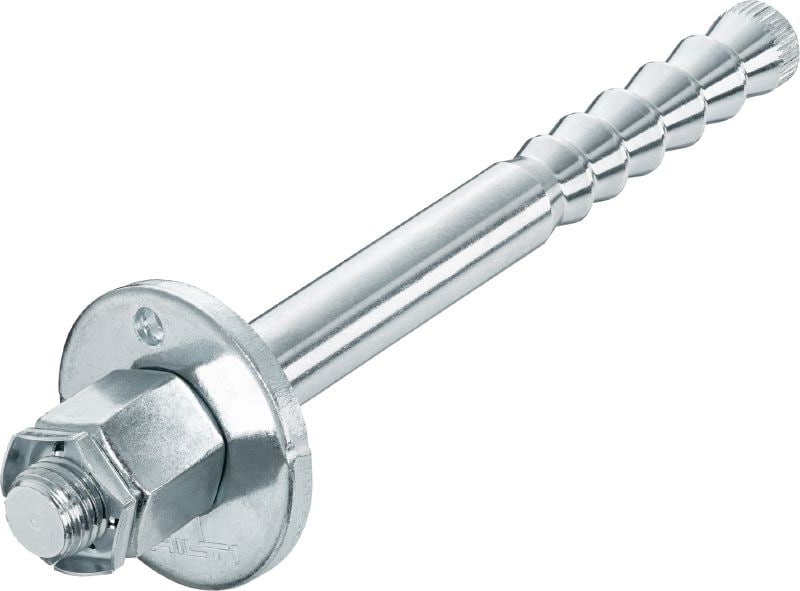

r10143244, Dynamic anchor rod for injection (carbon steel) for through and presetting

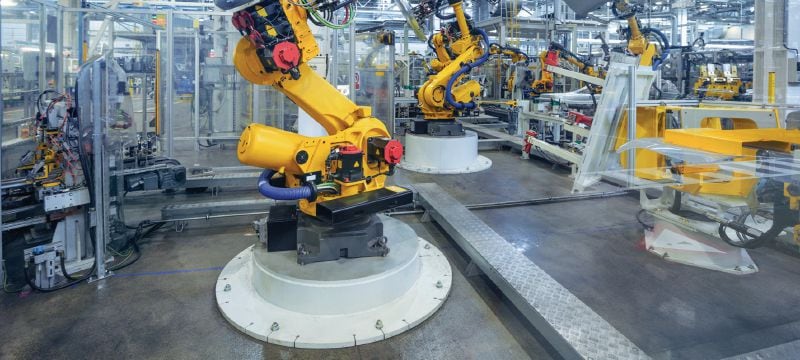

HAS-D, r10143244, Industry Automotive: Robotic & machinery fixation in concete

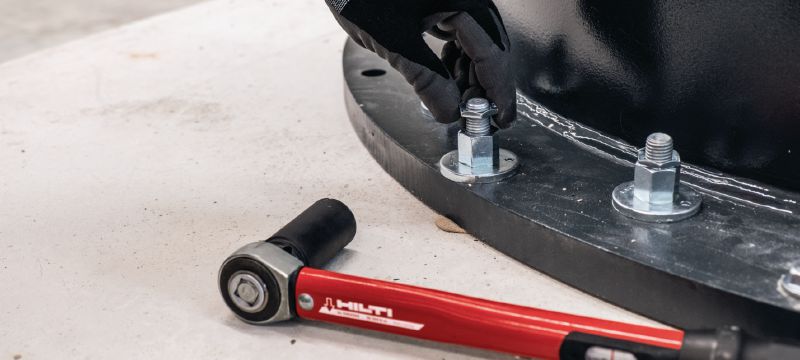

Fastening of robots in the automotive industry with HY-200 and HIT-Z-D dynamic set, HAS-D, r10143244
HAS-D
HDA Heavy-duty anchor, undercut anchor HDA Schwerlastanker, Hinterschnittanker, HAS-D, r10143244

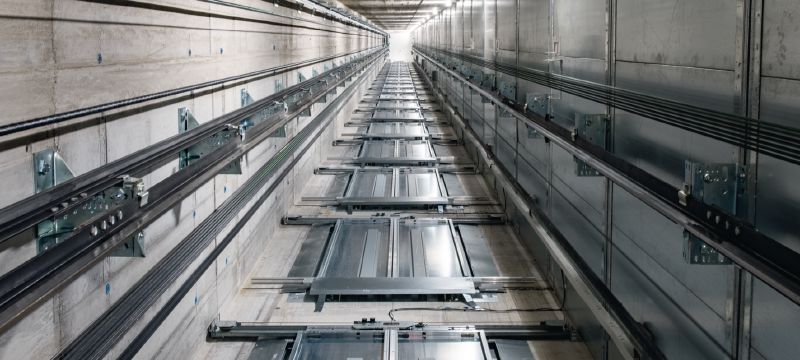

Elevators installed separated by MIQ wall, r10143244Image reference: Andreasturm. Ein Projekt von SBB Immobilien. (www.andreasturm.ch)Andreasturm. A project of SBB Real Estate. (www.andreasturm.ch)
r10143244, Dynamic anchor rod for injection (carbon steel) for through and presetting
HAS-D, r10143244, Industry Automotive: Robotic & machinery fixation in concete
Fastening of robots in the automotive industry with HY-200 and HIT-Z-D dynamic set, HAS-D, r10143244
HAS-D
HDA Heavy-duty anchor, undercut anchor HDA Schwerlastanker, Hinterschnittanker, HAS-D, r10143244
Elevators installed separated by MIQ wall, r10143244Image reference: Andreasturm. Ein Projekt von SBB Immobilien. (www.andreasturm.ch)Andreasturm. A project of SBB Real Estate. (www.andreasturm.ch)

High-performance dynamic anchor rod for through and presetting using injectable hybrid anchors (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Choose options

Anchor size - D
  • M16
Anchor length - L
  • 200 mm
  • 220 mm
Material composition
  • Steel, 8.8 grade, zinc-plated (min. 5 µm)
Pack size
  • 8 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From 755.10 ILS

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS Software
Yes
Approvals / Test reports
ETA, Fire

Documents

Features & Applications

Features

  • Suitable for dynamic loading subject to fatigue
  • High loads in cracked concrete according to ETA approval
  • Optimal load transfer through special washer and filling of annular gap
  • Free of oil and debris for highest performance in combination with HIT-HY 200
  • Integrated dynamic set for fast and simple installation

Applications

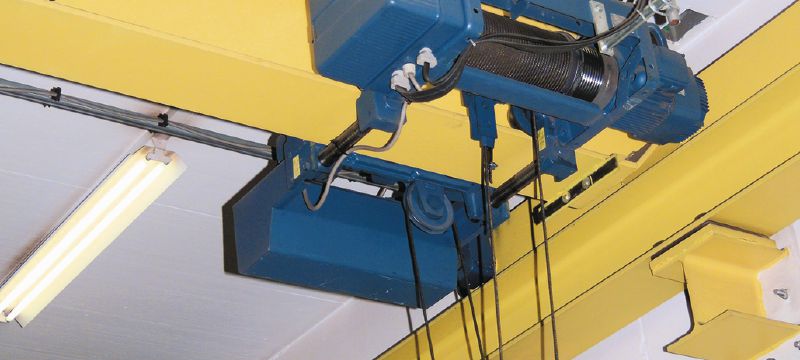

  • Heavy-duty fastenings for dynamic loads in uncracked and cracked concrete (e.g. robots, machinery, cranes, elevators)
  • Fastenings in cracked and uncracked concrete in combination with HIT-HY 200

For approval or certificate information, please see individual items.
