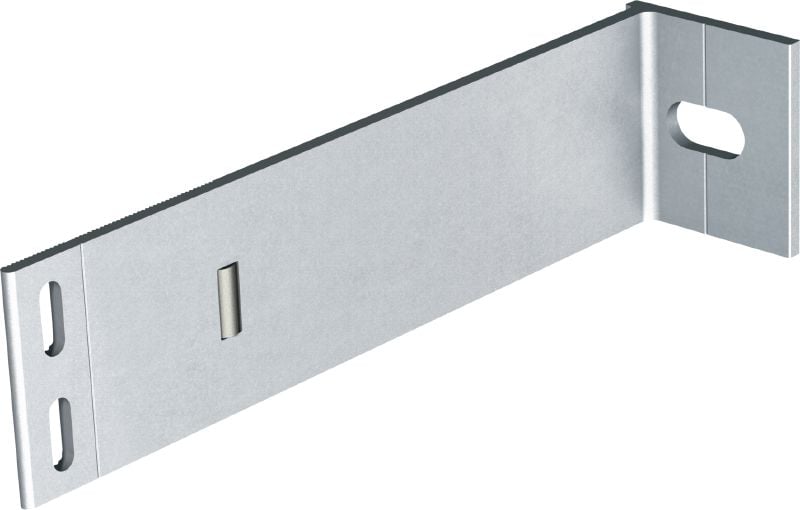

MFT-FOX V S Bracket

Bracket MFT-FOX V 34 S 11 #2305914

Configurator
Technical Data
Documents
Features & Applications
Related Products
FOX V S 11 bracket, new version
FOX V S 6.5 bracket
FOX V S 11 bracket

Versatile wall bracket for installing rainscreen façade substructures

  • Length: 34 mm
  • Hole diameter - D: 11 mm
  • Material composition: EN AW-6063 T66

Choose options

Length
  • 34 mm
Hole diameter - D
  • 11 mm
Pack size
  • 100 pc
 Product options
Quantity
Pack
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
1,267.00 ILS
12.67 ILS
/
1 each

Technical Data

Details
Technical illustrations
Length
34 mm
Hole diameter - D
11 mm
Material composition
EN AW-6063 T66
Width
46 mm
Height
50 mm

Documents

Approval document
Sustainability Documentation
Operating Instruction
pdf ETA-22-0816 EN, English [ 2.8 MB ]

Features & Applications

Features

  • Labor saving – optimized bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimized helping hand and clearer markings to simplify bracket fastening and rail alignment
  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimizing the ventilated façade substructure

Applications

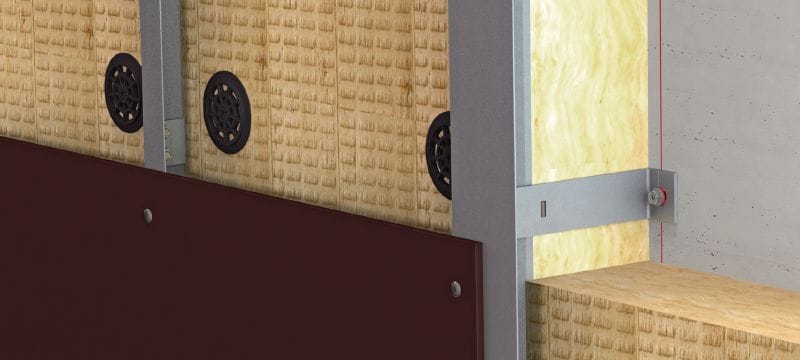

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
  • Mounting façade substructures on the primary structure (helping hand bracket)
  • Installing vertical support rails
  • Suitable for all façade cladding
