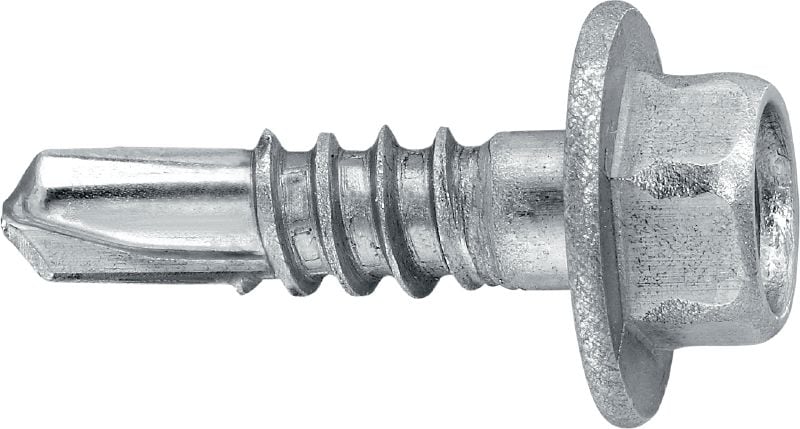

S-AD 01 SS self-drilling facade screws
בורג קודח נירוסטה S-AD01SS 5,5x19 #2039266
self-drilling screw (A4 stainless steel) without washer for aluminium façade fastenings (up to 4 mm)
- Screw drive/recess type: Hexagon 8
- Washer size: 13 mm
- Base materials: Aluminium
premium
Choose options
Thickness fastened range MF
- 1.5 - 10 mm
Drilling capacity range DC
- 1.5 - 4 mm
Length
- 19 mm
Screw drive/recess type
- Hexagon 8
Pack size
- 500 pc
Quantity
Pack
Total Pieces
500
Discounted net
1,370.00 ILS
2.74 ILS / 1 each
Technical Data
Screw drive/recess type
Hexagon 8
Washer size
13 mm
Base materials
Aluminium
Drilling capacity - max
4 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
5.5 mm
Length
19 mm
Drilling capacity DC - min
1.5 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
None
Documents
Features & Applications
Features
- self-drilling screw for fast assembly in one step
- Fast and robust drill tip
- For reliable fastenings with defined load values
- Free-spin zone under the head for reliable fixed and floating connections
- Attractive final appearance – screw head can be coloured to match the façade
Applications
- Fastening aluminium façade systems
- Stainless steel (A4) for fastening in highly corrosive environments
- Thin metal-to-metal connections (up to 4 mm)
- Fastening aluminium brackets to aluminium profiles
