VC 40H-X H-Class dust extractor (ACD)

VC 40HX 220-240V #2411683

Configurator
Technical Data
Documents
Features & Applications
Related Products

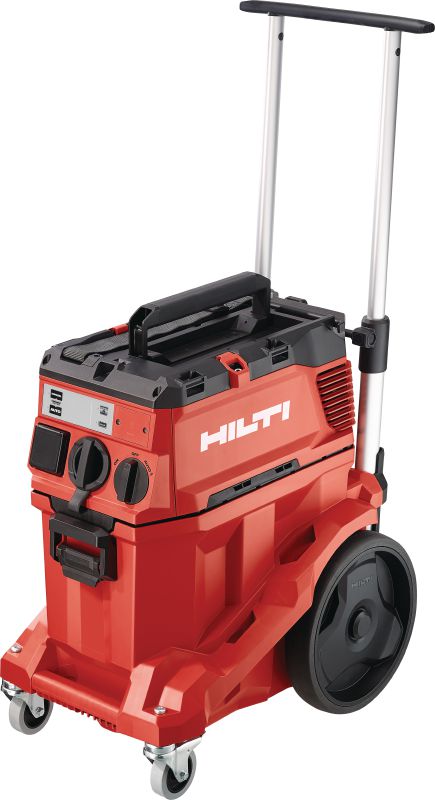

Still life picture of the corded vacuum cleaner VC 40/150-10 XE with plug socket

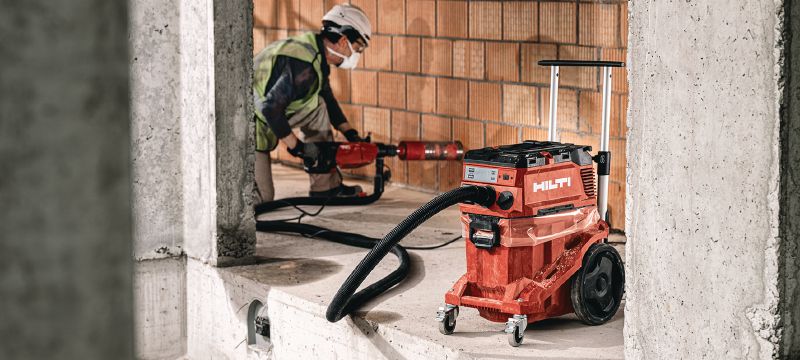

Application picture of the corded vacuum cleaner VC 40/150-10 X with the corded core drill attached.

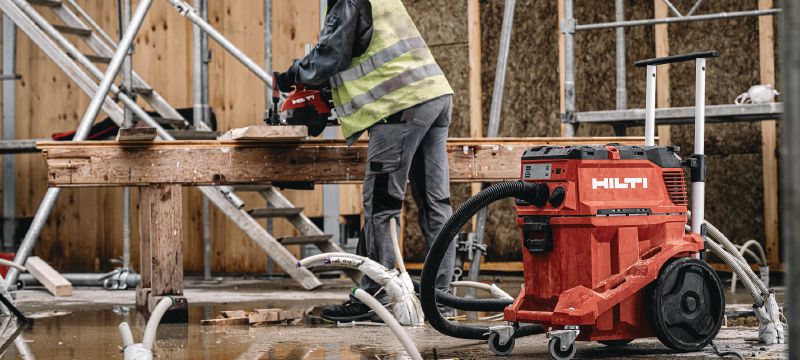

Application picture of the corded vacuum cleaner VC 40/150-10 X with the cordless circular saw SC 6WL-22

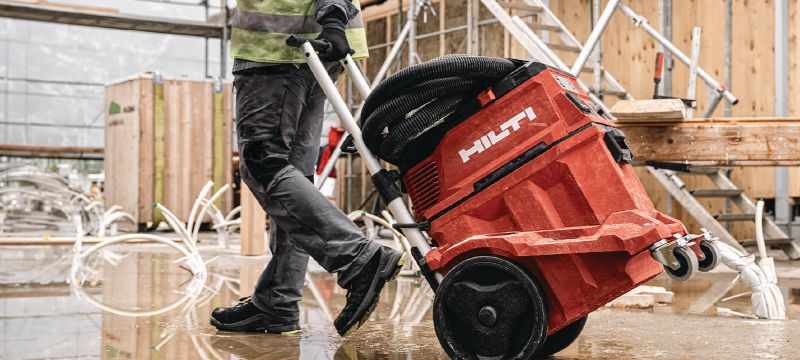

Application picture of the corded vacuum cleaner VC 40/150-10 X

Powerful dust extractor with large container and push-bar for connection with power tools and jobsite clean ups (wet & dry), 30l tank – ACD certified vacuum

  • Air Flow Motor Alone: 74 l/s
  • Air Flow at Hose End: 39 l/s
  • Max. Vacuum: 24.5 kPa

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Air Flow Motor Alone
74 l/s
Air Flow at Hose End
39 l/s
Max. Vacuum
24.5 kPa
Water capacity
22.8 l
Dust capacity
30 kg
Dust class
H
Application
Cleaning, Drilling and breaking, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting
Integrated power socket
Yes
Max socket output power
1200 W
Power source
Corded
Suction capacity
74 l/s
Supply cord length
7000 mm
Dimensions (LxWxH)
560 x 365 x 590 mm
Weight according to EPTA-Procedure 01/2003 without battery
14.4 kg

Documents

pdf Operating Instruction VC 20X-ACD; VC 40X-ACD (05), Arabic, Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Kazakh, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Serbian [ 5.9 MB ]

Features & Applications

Features

  • Sturdy H-class dust extractor built for construction work – integrated push-bar for mobility over longer distances and extra-durable components to withstand the harshest jobsite conditions
  • Extremely durable tires – help to withstand water, heat and punctures when in use on construction sites
  • Automatic filter cleaning – adaptive filter cleaning maintains consistent suction performance and activates only when necessary, helping reduce noise and work interruptions
  • Increased versatility – simply attach your VC 40H-X vacuum top to a VC continuous bag system for more capacity and faster bag swaps to match your application
  • Easy organization and transport – keep your gear stored with built-in accessories, including a belt strap for extra tool storage space, bungee cords for hose and power cable storage, and optional soft bag for spare filters and more

Applications

  • Dust extraction from grinding, cutting, slitting, drilling and dry coring tools
  • Wet and dry cleaning
  • Removing slurry during wet coring applications
  • Note: this vacuum cleaner is not recommended for use with asbestos. Hilti will not be liable for any damage caused by asbestos
  • ACD certified – meets the criteria for an appliance for combustible dust (ACD) for picking up fine particles that can ignite or explode when mixed with air (e.g. during woodworking or metalworking)
