VC 20M-X M-Class dust extractor

Dust extractor VC 20MX 220-240V #2411681

Configurator
Technical Data
Documents
Features & Applications
Related Products

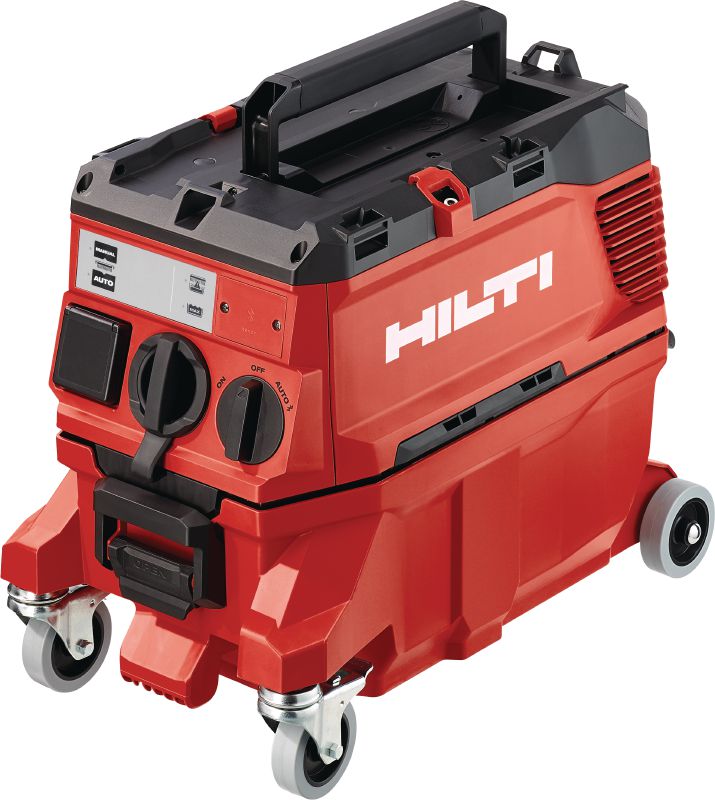

Still life picture of the corded vacuum cleaner VC 20/150-6 XE with plug socket

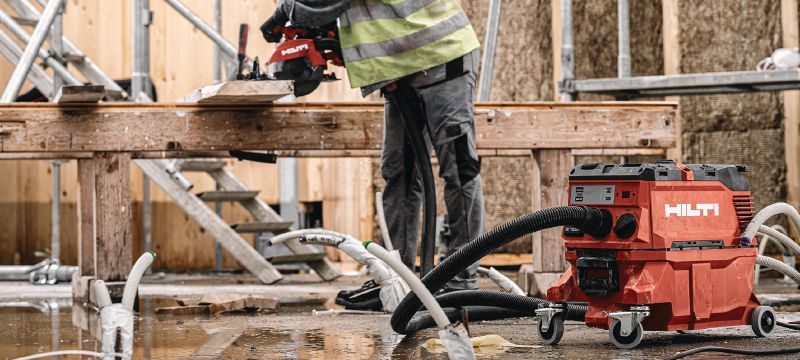

Cropped application picture of the corded vacuum cleaner VC 20/150-6 X with the cordless circular saw SC 6WL-22

Powerful dust extractor for connection with power tools and jobsite clean ups (wet & dry), 15l tank

  • Air Flow Motor Alone: 74 l/s
  • Air Flow at Hose End: 39 l/s
  • Max. Vacuum: 24.5 kPa

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
4,800.00 ILS
4,800.00 ILS
/
1 each

Technical Data

Air Flow Motor Alone
74 l/s
Air Flow at Hose End
39 l/s
Max. Vacuum
24.5 kPa
Water capacity
9 l
Dust capacity
15 kg
Dust class
M
Application
Cleaning, Drilling and breaking, Wood sawing, Cutting and grinding (light, up to 125 mm / 5 in), Drywall and wood sanding, Wet coring, Socket cutting
Integrated power socket
Yes
Max socket output power
1200 W
Power source
Corded
Rated input power
1200 W
Suction capacity
74 l/s
Supply cord length
7000 mm
Dimensions (LxWxH)
530 x 290 x 415 mm
Weight according to EPTA-Procedure 01/2003 without battery
11 kg

Documents

pdf Operating Instruction VC 20X; VC 40X (05), Arabic, Bulgarian, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Croatian, Hungarian, Italian, Kazakh, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Serbian [ 6.1 MB ]

Features & Applications

Features

  • Sturdy wet/dry dust extractor – built to handle dust extraction and clean-ups in the toughest jobsite conditions
  • Designed for agility – compact and light enough to move easily around all construction sites
  • Automatic filter cleaning – adaptive filter cleaning maintains consistent suction performance and activates only when necessary, helping reduce noise and work interruptions
  • Increased versatility – simply attach your VC 20M-X vacuum top to a VC continuous bag system for more capacity and faster bag swaps to match your application
  • Easy organization and transport – keep your gear stored with built-in accessories, including bungee cords for hose and power cable storage, and an optional soft bag for spare filters and more

Applications

  • Dust extraction from grinding, cutting, slitting, drilling and dry coring tools
  • Wet and dry cleaning
  • Removing slurry during wet coring applications
  • Dust extractor for wood and saw dust
  • M-Class vacuum – for capturing 99.9% of dust with a grain size under two microns
