MFT-CSP corner solution profile

Profile MFT-CSP 90x50x2,5 6m

MFT-CSP_90x50x2,5_6m,_Profile,_Still_life_3D

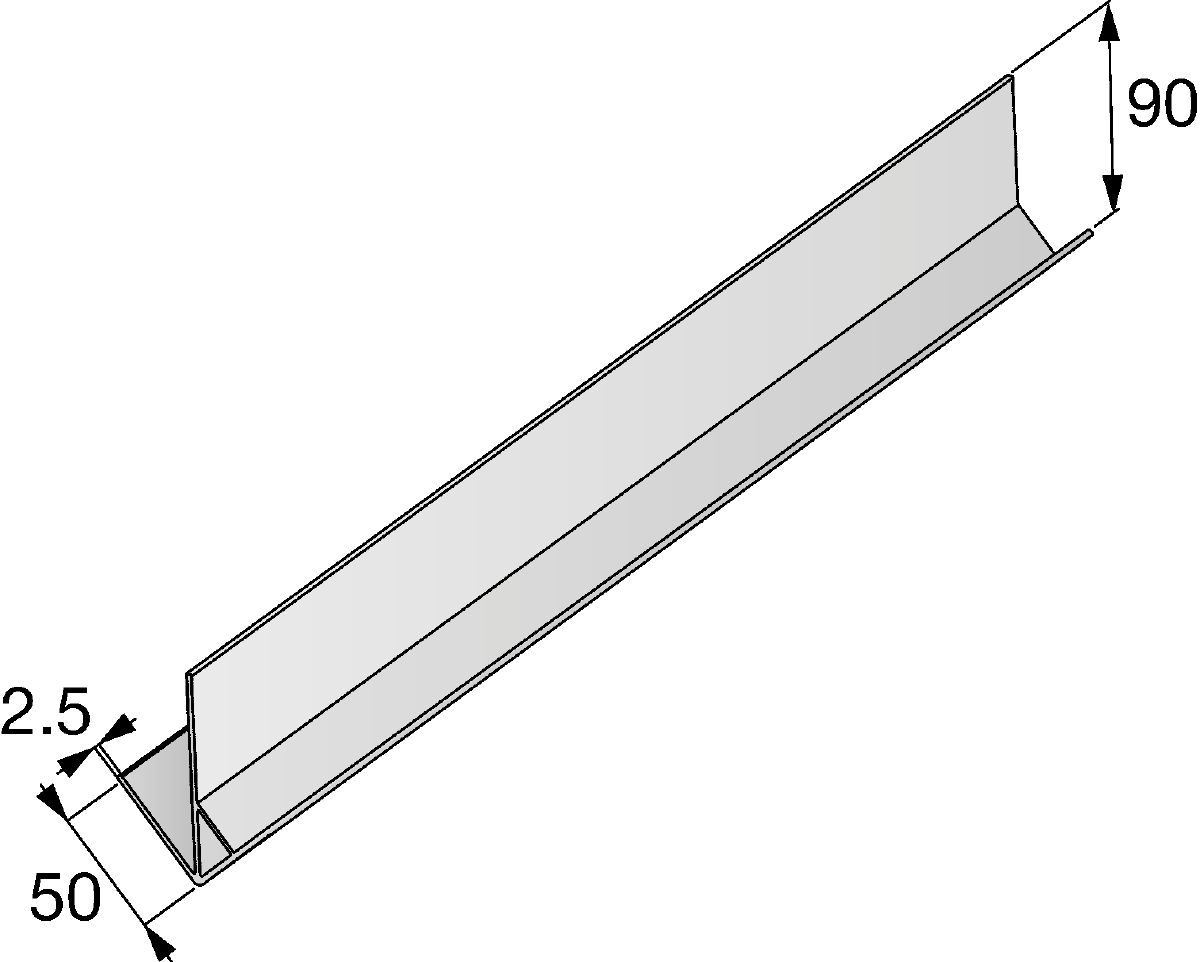

Profile, line with Dimension

corner solution with outside corners in ventilated facades

  • Height: 90 mm
  • Width: 50 mm
  • Length: 6000 mm

Choose options

Height
  • 90 mm
  • 145 mm
Width
  • 50 mm
Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
171.55 ILS
171.55 ILS
/
1 m

Technical Data

Height
90 mm
Width
50 mm
Length
6000 mm
Material composition
EN AW-6063 T66
Material thickness
2.5 mm

Documents

pdf  EPD_MFT Alu facade profiles, English [ 784.5 KB ]

Features & Applications

Features

  • Statically approved solution
  • Blocks air circulation around the corner thereby reducing wind loads at edge areas in accordance with DIN EN 1991-1-4/NA

Applications

  • For use at outside corners in ventilated facade projects
