Nuron

SF 10W-22 Cordless drill driver

Cordl. drill driver SF 10W-22 case #2335696

Configurator
Technical Data
Documents
Features & Applications
Related Products

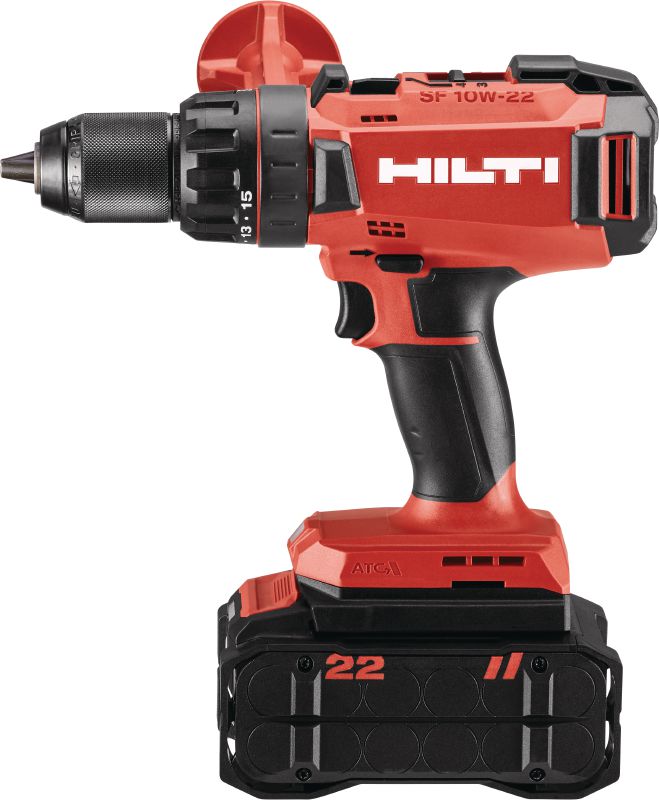

Still life image of SF 10W-22 with side handle.
Worker with a cordless drill driver SF 10W-22 and a B22-170 battery driving a screw into a wooden beam.
A worker standing on a lift holding a SF 10W-22 with tool tether screws a long screw into a wooden beam to fix it, cropped version
Worker with a cordless drill driver SF 10W-22 and a B22-170 battery driving a screw into a wooden beam.
Application picture of cordless SF 10W-22 on jobsite. Wood framing, 2x4's. Produced by HNA, June 2023. Minneapolis, MN, cropped image
Application picture of cordless SF 10W-22 on jobsite. Wood framing, 2x4's. Produced by HNA, June 2023. Minneapolis, MN, cropped image
Application picture of cordless SF 10W-22 on jobsite. Wood framing, 2x4's. Produced by HNA, June 2023. Minneapolis, MN, cropped image
Cropped image of lineman using SF 10W-22 drilling into wood post for energy and industry. Produced by W1, Fort Worth, TX in August 2023.

Cordless drill driver with higher torque which specializes in demanding applications in wood and other materials

  • Maximum torque (Soft / Hard Joint): 95 Nm (soft joint), 120 Nm (hard joint)
  • No load RPM: gear 1: 330 rpm; gear 2: 560 rpm; gear 3: 1300 rpm; gear 4: 2230 rpm
  • Dimensions (LxWxH): 240 x 67 x 221 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
3,275.00 ILS
3,275.00 ILS
/
1 each

Technical Data

Maximum torque (Soft / Hard Joint)
95 Nm (soft joint), 120 Nm (hard joint)
No load RPM
gear 1: 330 rpm; gear 2: 560 rpm; gear 3: 1300 rpm; gear 4: 2230 rpm
Dimensions (LxWxH)
240 x 67 x 221 mm
Tool body weight
1.85 kg
A-weighted emission sound pressure level
78 dB (A) 1
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 10W-22 (03), Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Slovak, Slovenian, Swedish [ 2.6 MB ]

Features & Applications

Features

  • High-torque cordless drill driver for more demanding fastening and drilling on wood and other materials thanks to a maximum soft joint torque of 95 Nm and a 4-speed gearbox
  • Uncompromised cordless performance - drill and drive more per charge at consistently higher speed thanks to Nuron batteries and the brushless motor
  • Built to last - full metal chuck, brushless motor, rubber bumpers and optimized cooling to better withstand intense use under tough jobsite conditions
  • Advanced safety features - Active Torque Control (ATC) helps to prevent uncontrolled spinning of the drill bit sticks, and an LED work light in the base provides a clear view of your work area
  • On the Nuron battery platform - cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive

Applications

  • Drilling with spade bits up to 40 mm diameter in wood
  • Drilling with auger bits up to 50 mm diameter in wood
  • Cutting recesses and through holes using hole saws up to 152 mm diameter
  • Driving heavy-gauge wood screws
  • Driving structural wood screws up to 12 mm diameter and 400 mm in length in wood
