DST 20-CA 2nd Wall saw

Wall saw DST 20-CA 3x400V EC #2349024

Configurator
Technical Data
Documents
Features & Applications
Related Products
DST 20-CA (G02), Wall saw - Trolley
DST 20-CA (G02), Wall saw
Wall saw application, cutting reinforced concrete
Wall saw application, cutting reinforced concrete

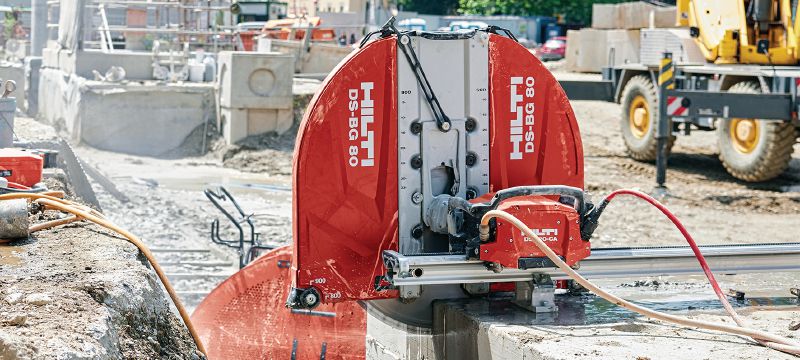

Application picture of the DST 20-CA wall saw. Horizontal cut with standard blade guard DS-BG 80 and 800mm saw blade in concrete.

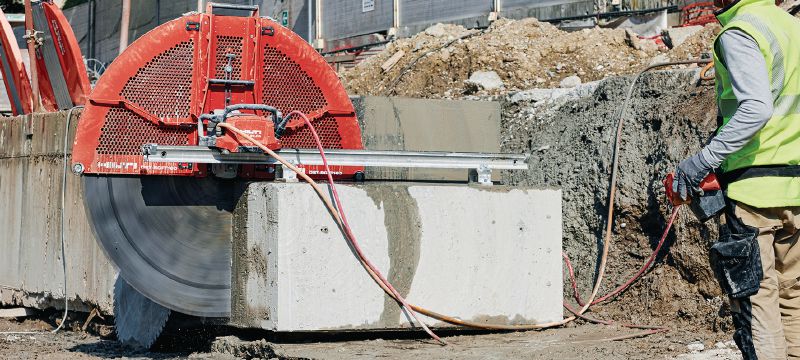

Application picture of the DST 20-CA wall saw. Horizontal cut with flush cutting blade guard DS-BGFT 160 and 1600mm saw blade in concrete.

Electric wall saw for tough cutting jobs with cut assistance and on-board control electronics (no external e-box)

  • Motor power: 20 kW
  • Min. generator power: 40 kVA
  • Power source: Electric

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
543,272.00 ILS
543,272.00 ILS
/
1 each

Technical Data

Motor power
20 kW
Min. generator power
40 kVA
Power source
Electric
Max. cutting depth
730 mm
A-weighted emission sound pressure level
98 dB (A) 1
Remote control
Wireless
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

Brochure
Operating Instruction
pdf Electric Diamond Wall and Wire Saws Leaflet [ 9.7 MB ]

Features & Applications

Features

  • Saves you time for other tasks - Hilti Cut Assist equips tools for fully automated cutting. Starts when surface is detected, then continuously optimizes speed, gear and water flow
  • Faster cutting time – the Pull/Push mode functionality in Cut Assist reduces cutting times compared to the normal pulling mode
  • Easier assembly and disassembly – the integrated flush cutting flange makes it easier to use
  • No external e-box necessary – control electronics integrated on-board make the saw more compact, easier to handle and quicker to set up
  • Cutting depth is displayed in real time on the remote control

Applications

  • Cutting and extending openings in concrete walls and floors
  • Precise demolition of walls and floors with low vibration
  • Cutting through heavily reinforced concrete, synthetic and natural stone, brick and block and other mineral-based materials
  • Cutting in tight spaces and where access is difficult
  • Facade and balcony renovation
