S-MD 03 SS Self-drilling metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
Self Drilling Screw

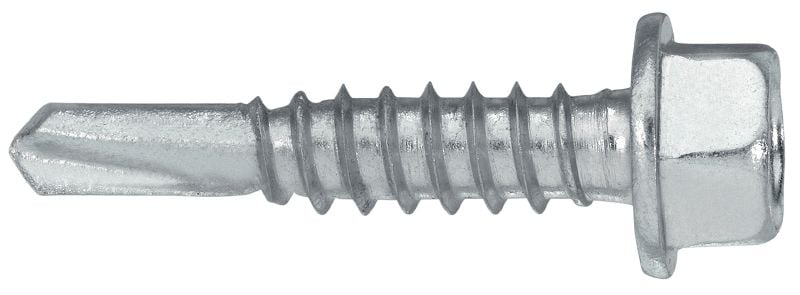

Self-drilling screw (A4 stainless steel) without washer for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Screw drive/recess type: Hexagon 8
  • Base materials: Aluminium, Carbon steel
  • Drilling capacity - max: 6 mm
premium

Choose options

Base materials
  • Aluminium, Carbon steel
Corrosion protection
  • Stainless steel A4
Drilling capacity range DC
  • 2.6 - 6 mm
Length
  • 25 mm
  • 32 mm
Pack size
  • 250 pc
  • 500 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 488.00 ILS

Technical Data

Screw drive/recess type
Hexagon 8
Base materials
Aluminium, Carbon steel
Drilling capacity - max
6 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
5.5 mm
Drilling capacity DC - min
2.6 mm
Screw-head diameter
10 mm
Product Class
Premium
Washer type
None

Documents

Approval document
Certificate
Reference document
Technical information
Sustainability Documentation
Instruction for use
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_de, German [ 4.4 MB ]
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be colored to match the façade
  • Reliable, highly corrosion-resistant fastenings

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A4) for fastening in highly corrosive environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • Fastening aluminum façade systems

For approval or certificate information, please see individual items.
