S-MD 03 PS Self-drilling metal screws

Self-drilling screw S-MD03PS 5.5 #202438

Configurator
Technical Data
Documents
Features & Applications
Related Products
L053373.tif

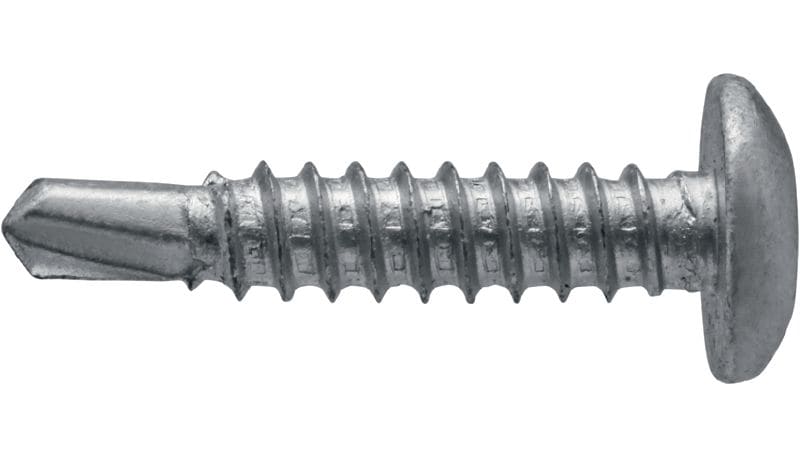

Self-drilling pan head screw (A2 stainless steel) without washer for medium-thick metal-to-metal fastenings (up to 5.5 mm)

  • Screw drive/recess type: TX 25
  • Base materials: Carbon steel, Aluminium
  • Drilling capacity - max: 5.5 mm
premium

Choose options

Base materials
  • Carbon steel, Aluminium
Corrosion protection
  • Stainless steel A2
Drilling capacity range DC
  • 1.5 - 5.5 mm
Thickness fastened range MF
  • 2.1 - 7 mm
Length
  • 22 mm
Pack size
  • 500 pc
 Product options
Quantity
Pack
Total Pieces
500
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
890.00 ILS
1.78 ILS
/
1 each

Technical Data

Screw drive/recess type
TX 25
Base materials
Carbon steel, Aluminium
Drilling capacity - max
5.5 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Length
22 mm
Drilling capacity DC - min
1.5 mm
Screw-head diameter
12 mm
Product Class
Premium
Washer type
None

Documents

Approval document
Reference document
Technical information
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_de, German [ 4.4 MB ]
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • For reliable and corrosion-resistant fastenings
  • Fast and robust drill tip
  • For reliable fastenings with defined load values
  • Pan head for improved aesthetics and better accessibility in tight spaces

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Thin metal-to-metal connections (up to 5.5 mm)
