S-MD 53 S Self-drilling metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-MD

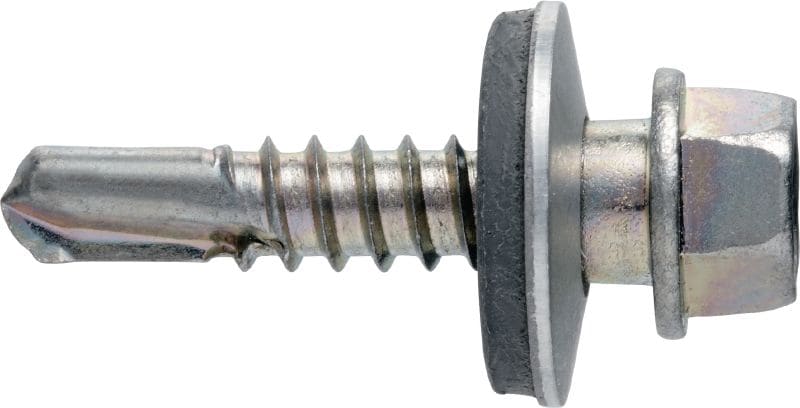

Self-drilling screw (A2 stainless steel) with 16 mm washer for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel, Aluminium

Choose options

Base materials
  • Carbon steel, Aluminium
Corrosion protection
  • Stainless steel A2
Drilling capacity range DC
  • 2.6 - 6 mm
Thickness fastened range MF
  • 2.1 - 14 mm
  • 2.1 - 32 mm
  • 2.1 - 45 mm
Length
  • 32 mm
  • 50 mm
  • 63 mm
Pack size
  • 100 pc
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 348.00 ILS

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel, Aluminium
Drilling capacity - max
6 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Drilling capacity DC - min
2.6 mm
Screw-head diameter
10 mm
Washer type
Bonded EPDM

Documents

Approval document
Certificate
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_de, German [ 4.4 MB ]
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfectly sealed fastening points
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to reliably seal out water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and prevents point burn-out
  • For reliable fastenings with defined load values

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • For applications requiring watertight fastenings with 16 mm washer
  • Fastening aluminum to aluminum substructures

For approval or certificate information, please see individual items.
