S-MD 51 Z Self-drilling metal screws

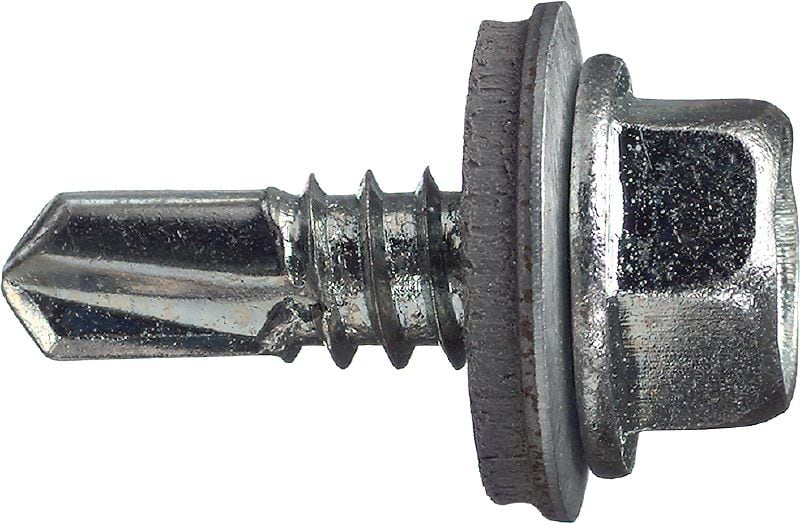

Self-drilling screw S-MD51Z 4 #219032

Self-drilling screw (zinc-plated carbon steel) with 16 mm washer for thin metal-to-metal fastenings (up to 3 mm)

Screw drive/recess type: Hexagon 8
Washer size: 16 mm
Base materials: Carbon steel

premium

Choose options

Thickness fastened range MF

1.2 - 8 mm

Drilling capacity range DC

1.2 - 2.75 mm

Length

19 mm

Screw drive/recess type

Hexagon 8

Pack size

500 pc

Product options

Quantity

Pack

Total Pieces

500

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

294.00 ILS

0.59 ILS / 1 each

Technical Data

Screw drive/recess type

Hexagon 8

Washer size

16 mm

Base materials

Carbon steel

Drilling capacity - max

2.75 mm

Environmental Conditions

Dry indoor

Screw diameter d

4.8 mm

Length

19 mm

Drilling capacity DC - min

1.2 mm

Screw-head diameter

10 mm

Product Class

Premium

Washer type

Bonded EPDM

Documents

Features & Applications

Features

Self-drilling screw for fast assembly in one step
EPDM rubber washer – creates a more reliable seal against water
Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
For reliable fastenings with defined load values
Attractive final appearance – screw head can be colored to match the façade

Applications

Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
Galvanized carbon steel for fastening in dry, indoor environments
Thin metal-to-metal connections (up to 3 mm)
For applications requiring watertight fastenings with 16 mm washer
Fastening sheet metal to sheet metal, fastening steel sheeting to thin steel profiles and liner trays
