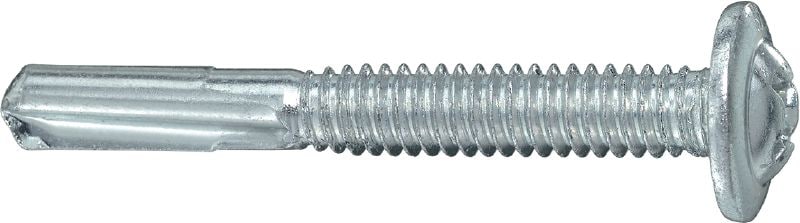

S-MD 03ZW Self-drilling metal screws with racing tip
Self-drilling wafer head screw (zinc-plated carbon steel) without washer for metal to metal fastening
- Screw drive/recess type: PH #2
- Length (input): 25 mm
- Base materials: Carbon steel
standard
Choose options
Thickness fastened range MF
- 2.6 - 12 mm
Drilling capacity range DC
- 1.25 - 5.3 mm
Length
- 25 mm
Screw drive/recess type
- PH #2
Pack size
- 1000 pc
Quantity
Packs
Total Pieces
1
Discounted net
From 450.00 ILS
Technical Data
Screw drive/recess type
PH #2
Length (input)
25 mm
Base materials
Carbon steel
Drilling capacity - max
5.3 mm
Environmental Conditions
Dry indoor
Screw diameter d
5.5 mm
Length
25 mm
Drilling capacity DC - min
2.5 mm
Screw-head diameter
11 mm
Product Class
Standard
Washer type
None
Documents
Features & Applications
Features
- Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevent point burn-out
- Self-drilling screw for fast assembly in one step
- For more reliable fastenings with defined load values
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Metal-to-metal connections
For approval or certificate information, please see individual items.
