S-MD 33 PS Self-drilling metal screws

Configurator
Technical Data
Documents
Features & Applications
Related Products

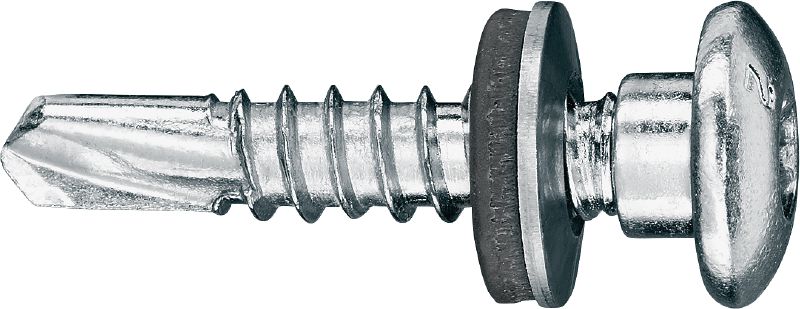

S-MD33PS 5,5x25 self-drilling panhead racing tip screw

Self-drilling pan head screw (A2 stainless steel) with 12 mm washer for medium-thick metal-to-metal fastenings (up to 6.0 mm)

  • Screw drive/recess type: TX 25
  • Washer size: 12 mm
  • Base materials: Carbon steel, Aluminium

Choose options

Base materials
  • Carbon steel, Aluminium
Corrosion protection
  • Stainless steel A2
Drilling capacity range DC
  • 2.1 - 6 mm
Thickness fastened range MF
  • 2.1 - 7 mm
  • 2.1 - 14 mm
Length
  • 25 mm
  • 32 mm
Pack size
  • 250 pc
  • 500 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From 420.00 ILS

Technical Data

Screw drive/recess type
TX 25
Washer size
12 mm
Base materials
Carbon steel, Aluminium
Drilling capacity - max
6 mm
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Drilling capacity DC - min
2.1 mm
Screw-head diameter
12 mm
Washer type
Bonded EPDM

Documents

Approval document
Certificate
Reference document
Technical information
Sustainability Documentation
Operating Instruction
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_de, German [ 4.4 MB ]
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Pan head for improved aesthetics and better accessibility in tight spaces
  • EPDM rubber washer – creates a more reliable seal against water
  • Reliable, corrosion-resistant fastenings
  • Fast and robust drill tip

Applications

  • Thin to medium-thick metal-to-metal connections (up to 5.5 mm)
  • Fastening steel or aluminum sheet metal and profiles to steel or aluminum substructures, with or without intermediate insulation layers
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • For applications requiring water-resistant fastenings - 12mm washer included
  • Fastening steel or aluminum to aluminum or steel substructures

For approval or certificate information, please see individual items.
