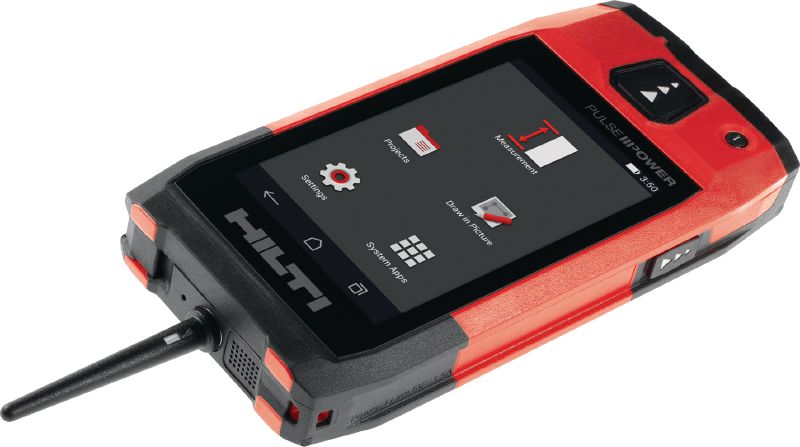

PD-C Laser meter

Name: PD-C Laser meter
Brand: Hilti
SKU: r4890614

Ultimate laser meter with built-in camera for documenting measurements up to 200m

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Measuring range

0.15 m - 200 m

Measurement accuracy

1.0 mm

Measuring functions

Single and continuous measurement, Digital water level

Calculation functions

Area, Volume, Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x), Addition, Subtraction, Offset, Min/max

Data memory

Internal flash memory

Maximum operating time

10 h

Battery type

Li-Ion

Laser class

< 1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)

IP protection class

IP 54 (EN 60529)

Interface

Bluetooth, USB

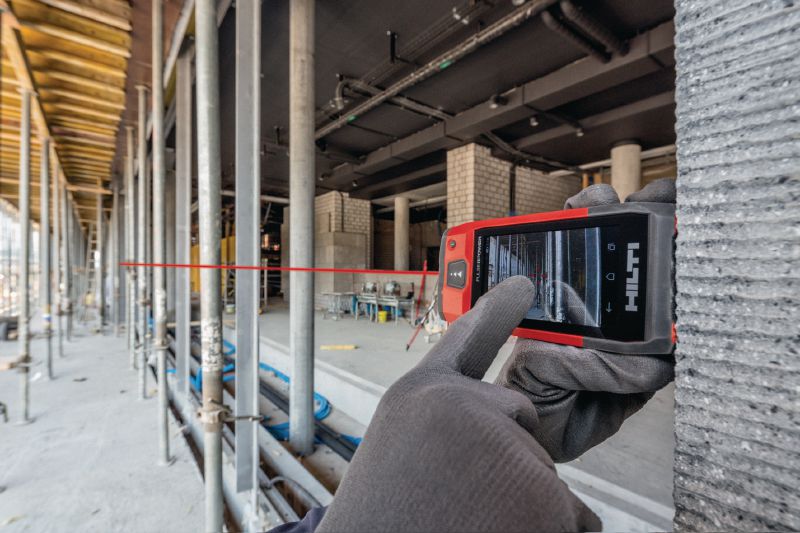

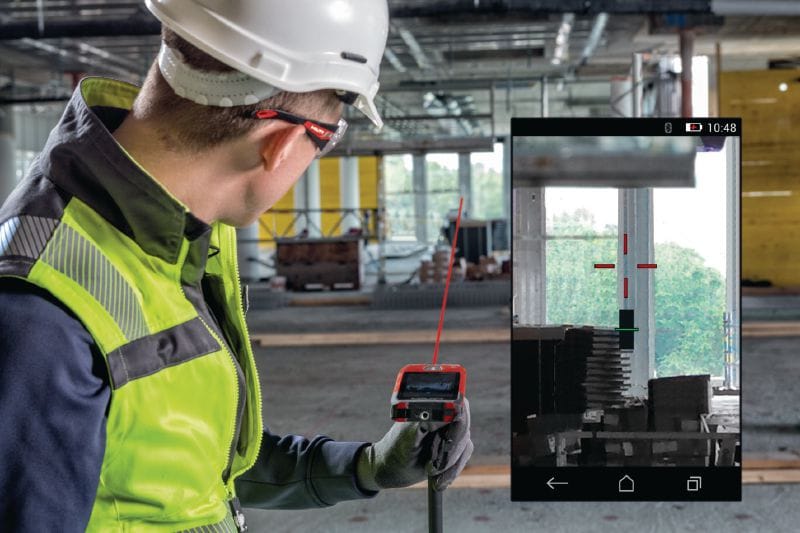

Built-in target camera to easily locate the laser point outdoors
Save thousands of measuring results with the 4 GB built-in memory – streamlines the recording of survey data and reduces opportunities for mistakes
Export measurements to a report (PDF), spreadsheet (CSV) or photo (JPG) for easy and efficient documentation production

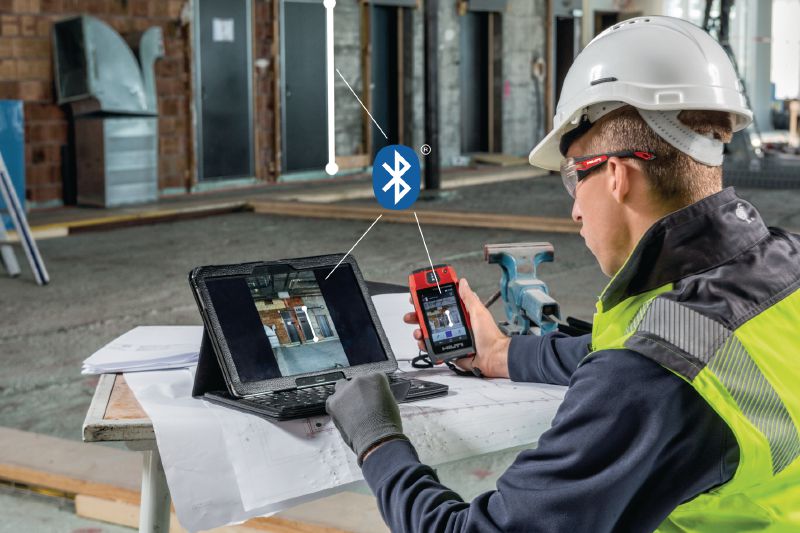

Bluetooth and USB interface – instantly send measurements to colleagues and other devices from anywhere
Free software updates downloadable from the PC utility software available from https://www.hilti.com/updatePDC

Collecting and documenting measurements while preparing an estimation or quotation for a jobsite or materials purchase
Checking and documenting correct completion of measurements to specification or for documentation of issues
Documentation of areas too complex for paper sketches by taking precise measurements and adding these as segments directly into a photo
Taking estimated measurements of places difficult to access safely and quickly either using SW-supported indirect funtions or the new “Measure from Photo” feature

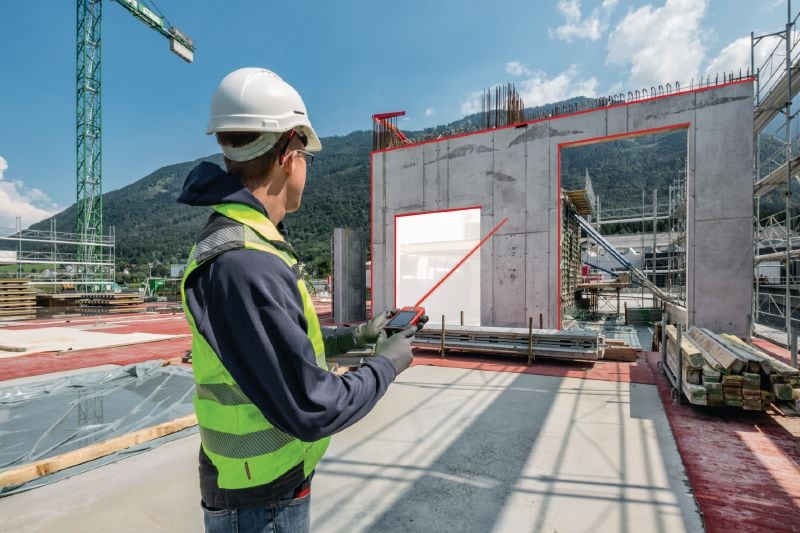

Measuring heights to ceilings and long distances (one-person operation) in situations where using conventional methods is difficult or impossible

For approval or certificate information, please see individual items.

Product warranty against parts and manufacturing irregularities for as long as we service the tool
Smooth on-site pick-up and delivery, thanks to our strong partnerships with trusted carriers
One click or call is all it takes – we do the rest

Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
Free verification of tool accuracy in accordance with manufacturer’s specifications.
